Mining laboratory machine sample making sealed pulverizer

Share to:
    Unit Price: USD 1200 / Bag/Bags
    Payment Type: L/C,T/T,Western Union
    Incoterm: FOB,CIF,EXW
    Min. Order: 1 Bag/Bags
    Delivery Time: 15 Days

Basic Info

Model No.FM

BrandLAN MEI

Additional Info

PackagingExport Wooden Packing

Productivity2000sets/year

TransportationOcean,Land,Air

Place of OriginCangzhou city,He bei province,China

Supply Ability20sets/month

CertificateISO9001

HS Code8474209000

PortTianjin,Qingdao,Shanghai

Payment TypeL/C,T/T,Western Union

IncotermFOB,CIF,EXW

Delivery Time15 Days

Product Description

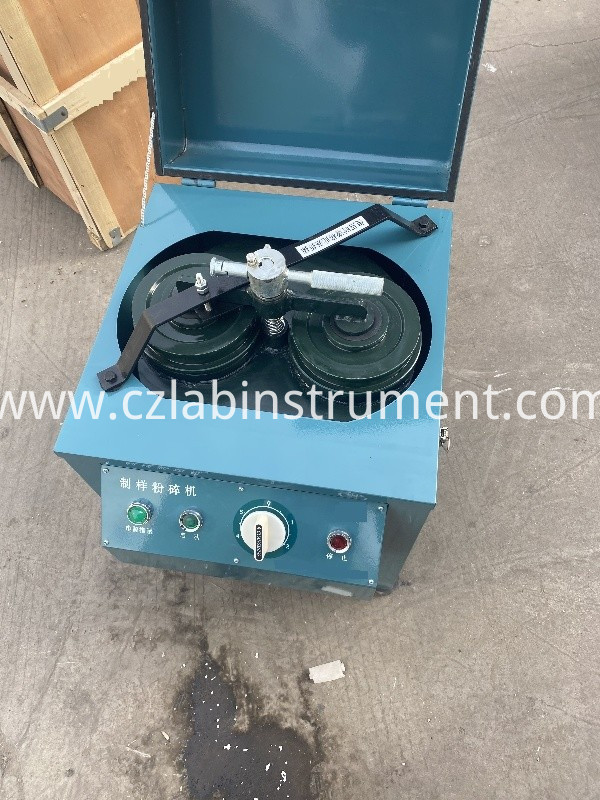

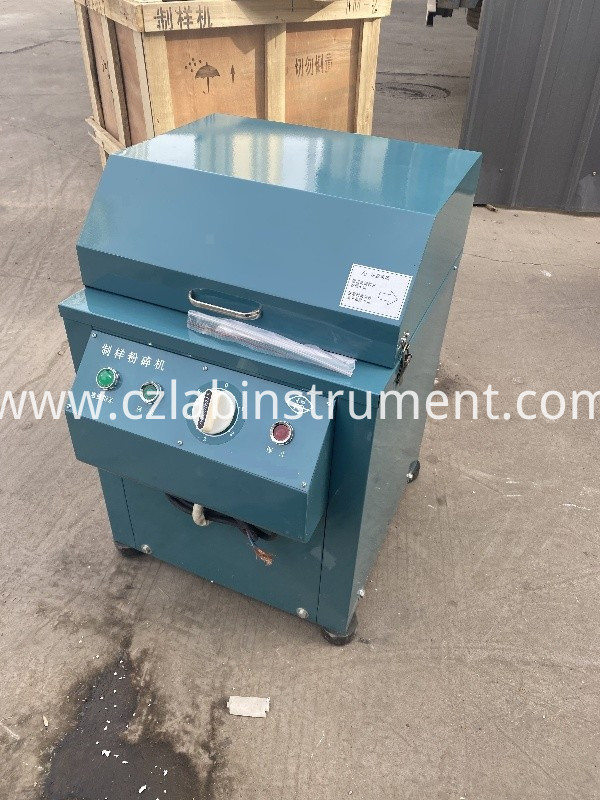

Mining laboratory machine sample making sealed Pulverizer



The working mode of the sealed test sample pulverizer is vibration grinding. The machine is driven by an electric motor. When the motor rotates at a high speed, the centrifugal force and vibration force generated by the eccentric hammer mounted on the shaft cause the vibrating steel body to generate an exciting force, and the abrasive material pressed on the vibrating steel body forms vibration and grinding. Features. The material is packed in a sealed material, and the crushing ring and the breaking hammer are arranged in the material, and the material is crushed and ground by the crushing ring and the crushing hammer to achieve the milling effect.

The grinding part is mainly composed of a squat seat, a scorpion body, a pulverizing ring, a pulverizing hammer and the like. After the grinding part receives the power of the power part, the pulverizing ring and the pulverizing hammer hit and grind the material at a high frequency in the stern body under the action of the high-speed peripheral body movement, and the materials collide with each other, and the material is impacted and ground under the action of the material. The required micro-powder.


Main parameters


Model

FM-1

FM-2

FM-3

Mesh size of feed (mm)

<15

Mesh size of discharging(mesh)

80-200

Feed quantity(g)

<150

<300

<450

Power

380V 50HZ

Hardness of earthen bowl

HRC30-35

Impact value

J/cm²39.2

Wiring

Three-phase four-wire

Overall dimension(mm)

450*450*665

Motive power

Y90L-6

Weight of whole machine(kg)

120

124

130

Mall Vertical Mill MachineSample Grinder Machine

Laboratory Pulverizer

Laboratory Ore PulverizerLaboratory Ore Pulverizer PackingLaboratory Equipment For Cement Concrete14572758 532078220318753 5666454048169953465 N

Looking for ideal Sample Sealed Pulverizer for Laboratory Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Small Lab Grinding Machine are quality guaranteed. We are China Origin Factory of Grinding the Ore Material Samples. If you have any question, please feel free to contact us.
