A Muffle furnace allows rapid high-temperature heating, recovery, and cooling in self-contained, energy-efficient cabinets. A muffle furnace separates the object to be heated from all byproducts of combustion from the heat source. In modern electrical furnaces, a radiation or convection energy applies heat to a chamber using a high-temperature heating coil inside insulated material. The insulating material effectively acts as a muffle, preventing heat from escaping.
Sentro Tech provides high-quality technical support and service for our customers. We manufacture and ship products from our Ohio-based headquarters. Get the replacement parts you need quickly. We stock all replacement parts onsite. Heating elements, fiber board installation, thermocouples and other electric parts ship at your earliest convenience.
We proudly serve our customers and offer a 100% satisfaction guarantee on all our high-temperature muffle furnaces. Contact a Sentro Tech sales representative if you have specific questions about our products or your production needs.

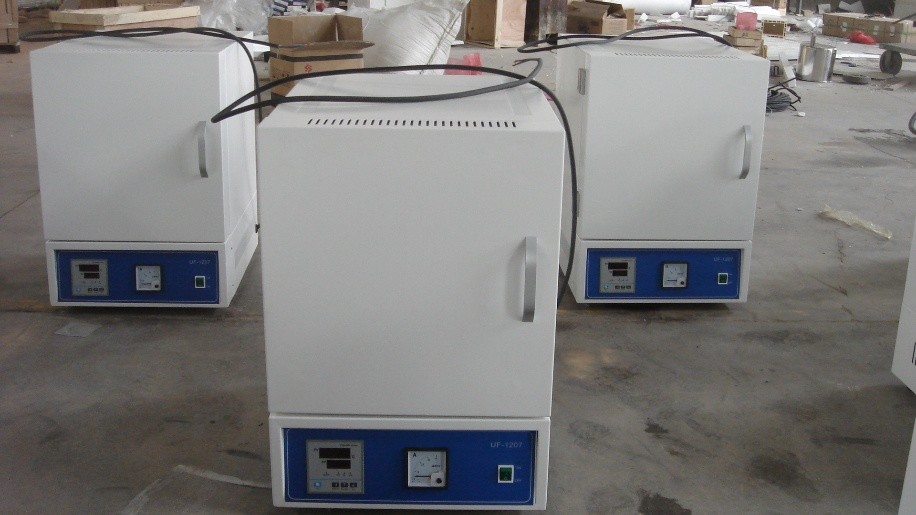

Uses:Box-type resistance furnace designed for chemical element analysis, and small pieces of steel hardening, annealing, tempering, and other high temperature heat treatment in laboratories of industrial and mining enterprises, universities, research institutes; can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.
Characteristics:1. unique door design, safe and easy door operation, to ensure the high temperature inside that the heat does not leak.2.high-precision digital display meter, temperature control system with microcomputer chip processor with PID regulation characteristics, time set, temperature difference correction, over-temperature alarm and other functions, high precision temperature control.3.The furnace cavity is baked by the high temperature refractories to ensure durability.4. excellent door seal to make the heat loss to be minimum, increase the temperature uniformity in the furnace.5.double-layer shell design, an effective barrier to internal temperature, reduce the temperature of the shell to achieve energy saving and environmental protection.The panel is made of stainless steel, with corrosion-resistant and not high temperature deformation characteristics.6.controller and cabinet are one, simple and easy to operate.
| Model | Voltage (V) | Rated power (kw) | Wave degree of temperature (℃) | Max temperature (℃) | workroom size (mm) | Overall Dimensions (mm) | FOB(Tianjin)price |
| SX-2.5-12T | 220V/50HZ | 2.5 | ±5 | 1200 | 200*120*80 | 490*400*620 | 620 USD |
| SX-5-12T | 220V/50HZ | 5 | ±5 | 1200 | 300*200*120 | 590*460*680 | 750 USD |
Packing: wooden case(seaworthy packing)
Delivery time: 7days
