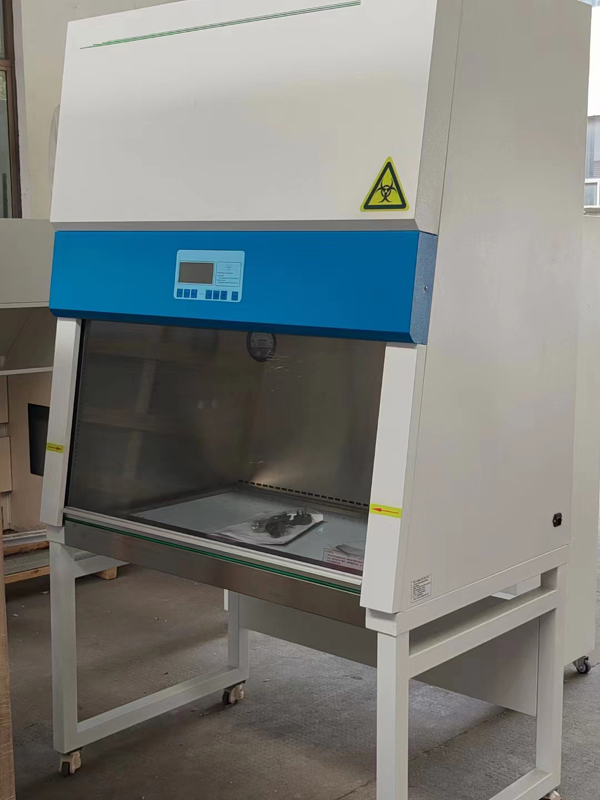

European customer order 20 Sets Biological Safety Cabinet Laboratory
Biological safety cabinet (BSC) is a box-type air purification negative pressure safety device that can prevent some dangerous or unknown biological particles from escaping aerosols during experimental operation. It is widely used in scientific research, teaching, clinical inspection and production in the fields of microbiology, biomedicine, genetic engineering, biological products, etc. It is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.
|
Model
|
BSC-700IIA2-EP(Table Top type) | BSC-1000IIA2 |
BSC-1300IIA2
|
BSC-1600IIA2
|
|
Airflow system
|
70% air recirculation, 30% air exhaust | |||
|
Cleanliness grade
|
Class 100@≥0.5μm (U.S. Federal 209E) | |||
|
Number of colonies
|
≤0.5pcs/dish·hour (Φ90mm culture plate) | |||
|
Inside the door
|
0.38±0.025m/s | |||
|
Middle
|
0.26±0.025m/s | |||
|
Inside
|
0.27±0.025m/s | |||
|
Front suction air speed
|
0.55m±0.025m/s (30% air exhaust)
|
|||
|
Noise
|
≤65dB(A)
|
|||
|
Vibration half peak
|
≤3μm
|
|||
|
Power supply
|
AC single phase 220V/50Hz | |||
|
Maximum power consumption
|
500W |
600W
|
700W
|
|
|
Weight
|
160KG |
210KG
|
250KG
|
270KG
|
|
Internal Size (mm) W×D×H
|
600x500x520 |
1040×650×620
|
1340×650×620
|
1640×650×620
|
|
External Size (mm) W×D×H
|
760x650x1230 |
1200×800×2100
|
1500×800×2100
|
1800×800×2100
|
