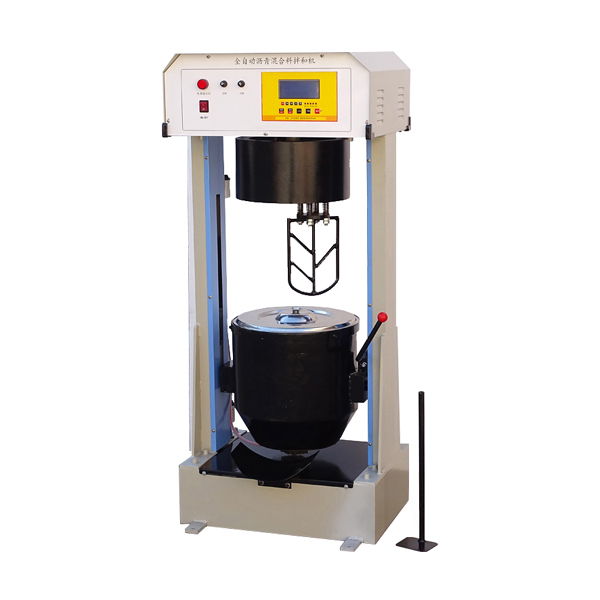

Automatic asphalt mixture mixer
Automatic asphalt mixture mixer is designed and manufactured in accordance with the requirements for asphalt mixture blending specified in the “Test Procedures for Asphalt and Asphalt Mixture in Highway Engineering” (JTG E20-2011) of the People’s Republic of China’s transportation industry standards. It is suitable for blending asphalt mixtures before making test specimens and complies with the high-temperature blending requirements in the “Technical Specifications for Design and Construction of Steel Bridge Deck Pavement” (JTG/T 3364-02-2019).
This instrument adopts advanced microcomputer control technology. The mixing temperature can be set freely within the range of room temperature to 300℃, and it automatically performs PID regulation and control. It can also automatically control the mixing time, achieving operation automation. It has a phase sequence protection function to prevent mechanical damage caused by incorrect phase sequence.
This instrument is compact in size, saving laboratory space, and easy to operate. It is the preferred choice for asphalt production enterprises, highway and bridge construction units, as well as relevant colleges and universities and research institutions for asphalt mixture blending.
Top of the form
I. Main Technical Features
1. This instrument adopts advanced microcomputer control technology. The mixing temperature can be set freely within the range of room temperature to 300℃, and it automatically performs PID regulation and control. It can also automatically control the mixing time, achieving operation automation.
2. It has phase sequence protection function, which can prevent mechanical damage caused by incorrect phase sequence.
3. This instrument is of floor-standing structure, with novel design, reasonable structure and convenient use.
Main technical indicators and parameters
1.Mixing volume: 20 liters.
2. Temperature control range: Room temperature to 300℃.
Temperature control accuracy: ±3℃.
4. Timing range: (0 to 9999) seconds.
5. Timing accuracy: ±1 second.
6. Mixing paddle speed: 47 revolutions per minute for revolution around the axis; 76 revolutions per minute for self-rotation.
7. Mixing motor: AC 380V, 550W; 1400 rpm; 50Hz.
8. Hoisting motor: AC 220V, 250W; 1400 rpm; 50Hz.
9. Dimensions: 600mm × 400mm × 1300mm (length × width × height).
10. Net weight of the whole machine: 215 kilograms.
11. Working power supply: AC (380 ± 10%) V; 16 A; 50 Hz (three-phase four-wire system with neutral wire).
12. Ambient temperature: (-5 to +50)℃.
13. Environmental humidity: ≤ 80%.
14.Power: 3500W
