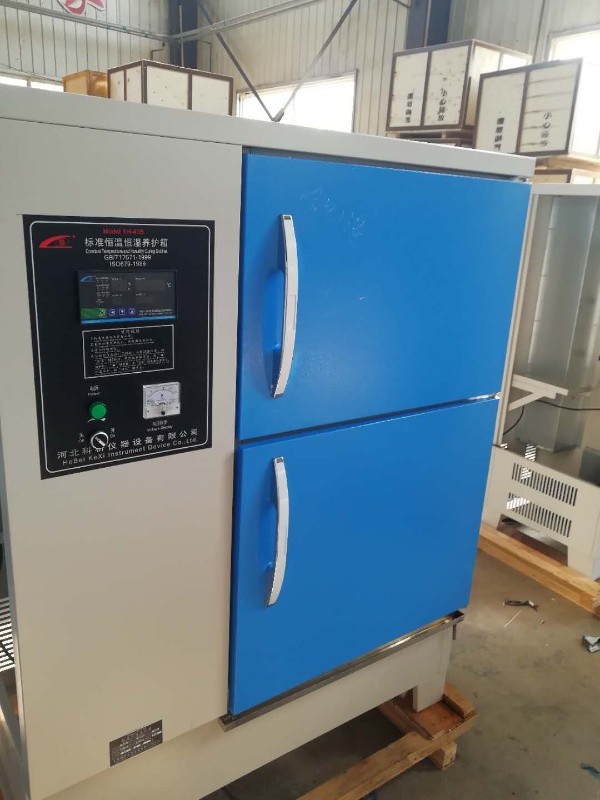

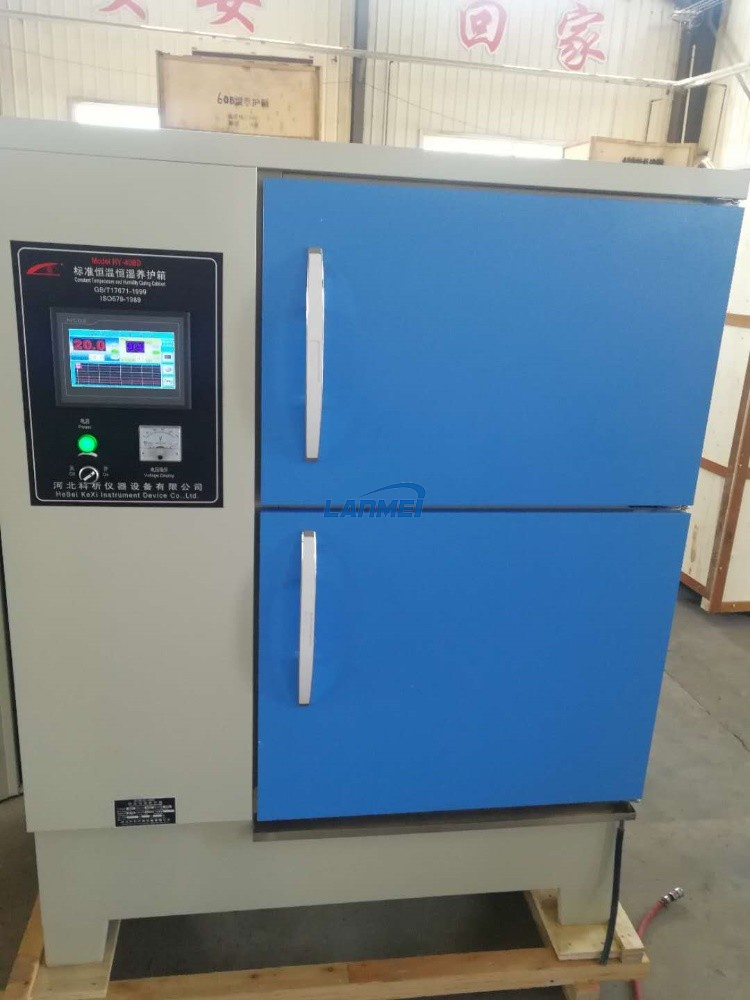

Automatic Control Concrete Laboratory Standard Cement Curing Box

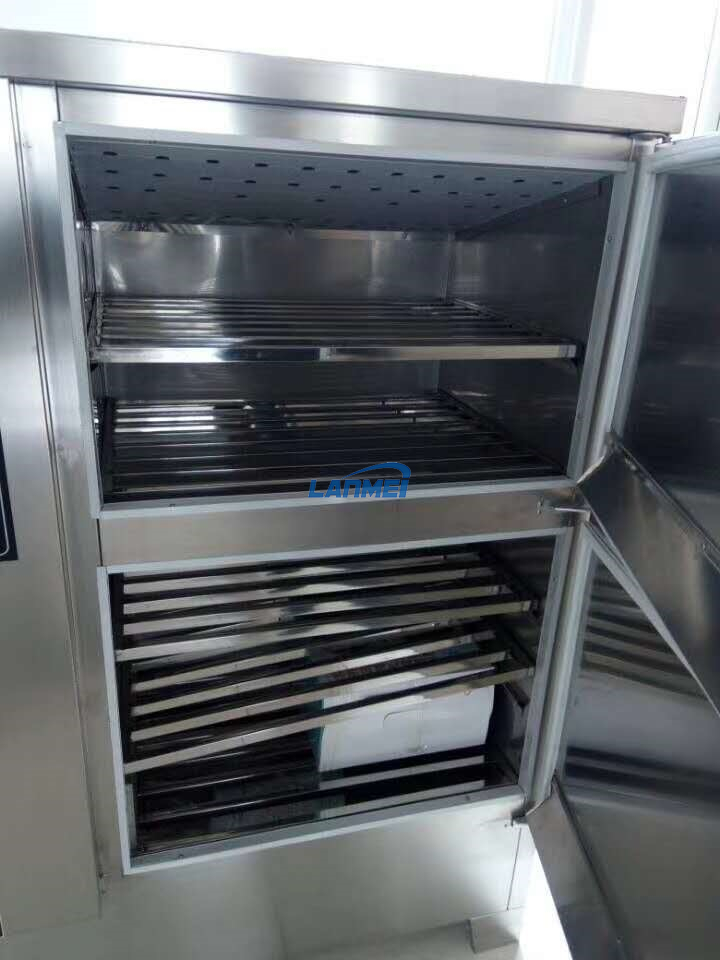

The whole is made of imported stainless steel, which will never corrode. Polyurethane foam is used for heat preservation and fully automatic control function.
technical parameter:1.Internal dimensions: 700 × 550 x 1100 (mm)2. Capacity: 40 sets of Soft practice test molds, 60 concrete 150 x 150 testmolds3. Constant temperature range: 16-40℃ adjustable4. Constant humidity range: ≥90%5. Compressor power: 165W6. Heater: 600w7. Atomizer: 15W8. Fan power: 16w × 29.Net weight: 150kg10.Dimensions: 1200 × 650 x 1550mm
Note: There are many models of constant temperature and humidity maintenance box series, B type is fully automatic refrigeration function,

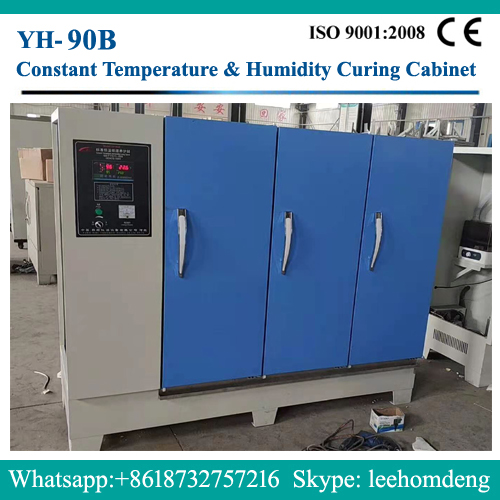

| Model | YH-20B | YH-40B | YH-60B | YH-80B | YH-90B |
| Inner size | 680*520*600 (mm) | 700*550*1100 (mm) | 960*570*1000 (mm) | 1450*580*1350 (mm) | 1650*580*1350 (mm) |
| Capacity | 20 sets of Soft practice test molds /40 pieces 150*150*150 concrete test molds | 40 sets of Soft practice test molds/60 pieces 150*150*150 concrete test molds | 60 sets of Soft practice test molds/90 pieces 150*150*150 concrete test molds. | 150 pieces 150*150*150concrete test molds. | 180 pieces of 150*150*150concrete test molds |
| Temperature range | 16-40 ℃Adjustable accuracy:20 ℃ ± 1 ℃ | 16-40℃ adjustable | 16-40℃ adjustable | 16-40℃ adjustable | 16-40℃ adjustable |
| Humidity range | ≥90% Accuracy: ± 3% | ≥90% | ≥90% | ≥90% | ≥90% |
| Refrigerator power | 125W | 165W | 185W | 260W | 260W |
| Heating power | 600w | 600w | 600w | 1000W | 1000W |
| Humidifying power | 15W | 15W | 15W | 15W | 15W |
| Fan power | 16w | 16w*2 | 16Wx2 | 30W*3 | 30W*3 |
| Weight | 80kg | 150kg | 180kg |
