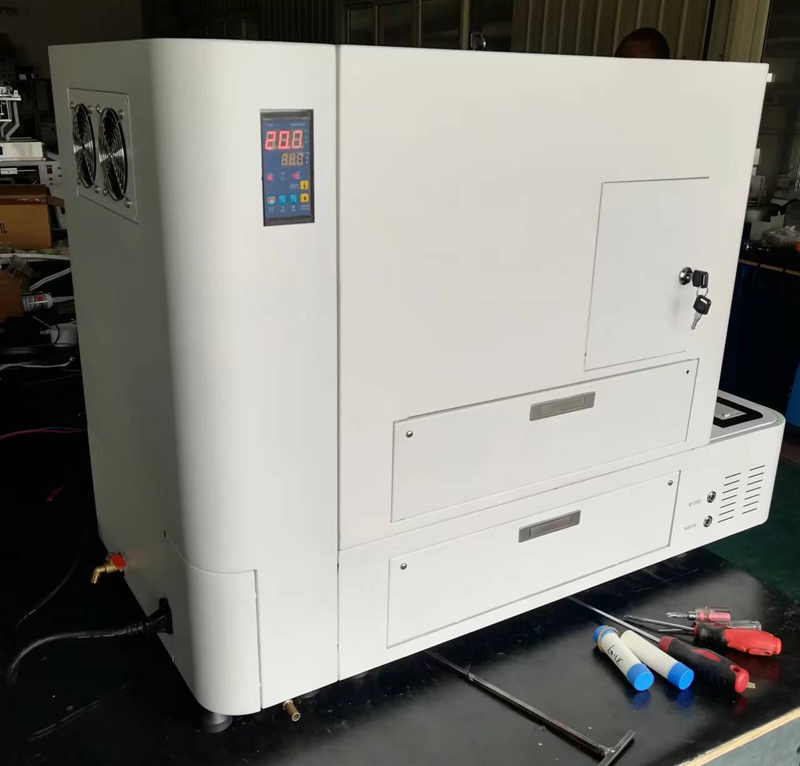

Automatic Vicat Needle Cement Setting Time Tester

Automatic Vicat Needle Cement Setting Time Tester

Automatic Vicat Needle For Cement is automatically compared with the manual synchronization time comparison test of the 240 groups of the Institute of Cement Science and the New Architecture Materials Research Institute. The relative error rate<1%, which="" proves="" that="" its="" test="" accuracy="" and="" reliability="" meet="" the="" national="" standard="" requirements.="" at="" same="" time="">

XS2019-8 Intelligent Cement setting time meter is jointly designed by our company and the Building Materials Research Institute. It is the first automatic control equipment in China to fill the gap of the project in my country. This product has won the National Invention Patent (Patent Number: ZL 2015 1 0476912.0), and also won the third prize of scientific and technological progress in Hebei Province.

The main technical parameters :

1. Power voltage: 220V50Hz power: 50W

2. Eight round molds can be placed in the test parts at the same time, and each round mold is automatically alarm.

3. Working room: no dust, strong electricity, strong magnetic, strong radio wave interference

4. Instrument has the function of automatic detection correction

5. Have a fault alarm prompt function

6. The temperature of the test box is 20 ℃ ± 1 ℃, the internal humidity ≥90%, the self -control function

7. Measurement range: 0-50mm

8. Measurement depth accuracy: 0.1mm

9. Running time record: 0-24h.

10. X shaft, Y selection with 16W service motor movement

11. X axis, Y axis uses a roller screw, high accuracy

12. Select imported V -type frequency conversion compressors, power: 80W

13. Overall dimensions: 900*500*640mm

14. Equipment weight: 65kg

The Vicat test is used for testing materials that have no real melting points. The main principle is that it measures the temperature at which a flat ended needle is able to penetrate the sample.

1.Service:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the

machine,

b.Without visiting, we will send you user manual and video to teach you to install and operate.

c.One year guarantee for whole machine.

d.24 hours technical support by email or calling

2.How to visit your company?

a.Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can

pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),

then we can pick up you.

3.Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

4.You are trade company or factory?

we have own factory.

5.What can you do if the machine broken?

The buyer send us the photos or videos. We will let our engineer to check and provide professional suggestions. If it needs change parts, we will send the new parts only collect cost fee.
