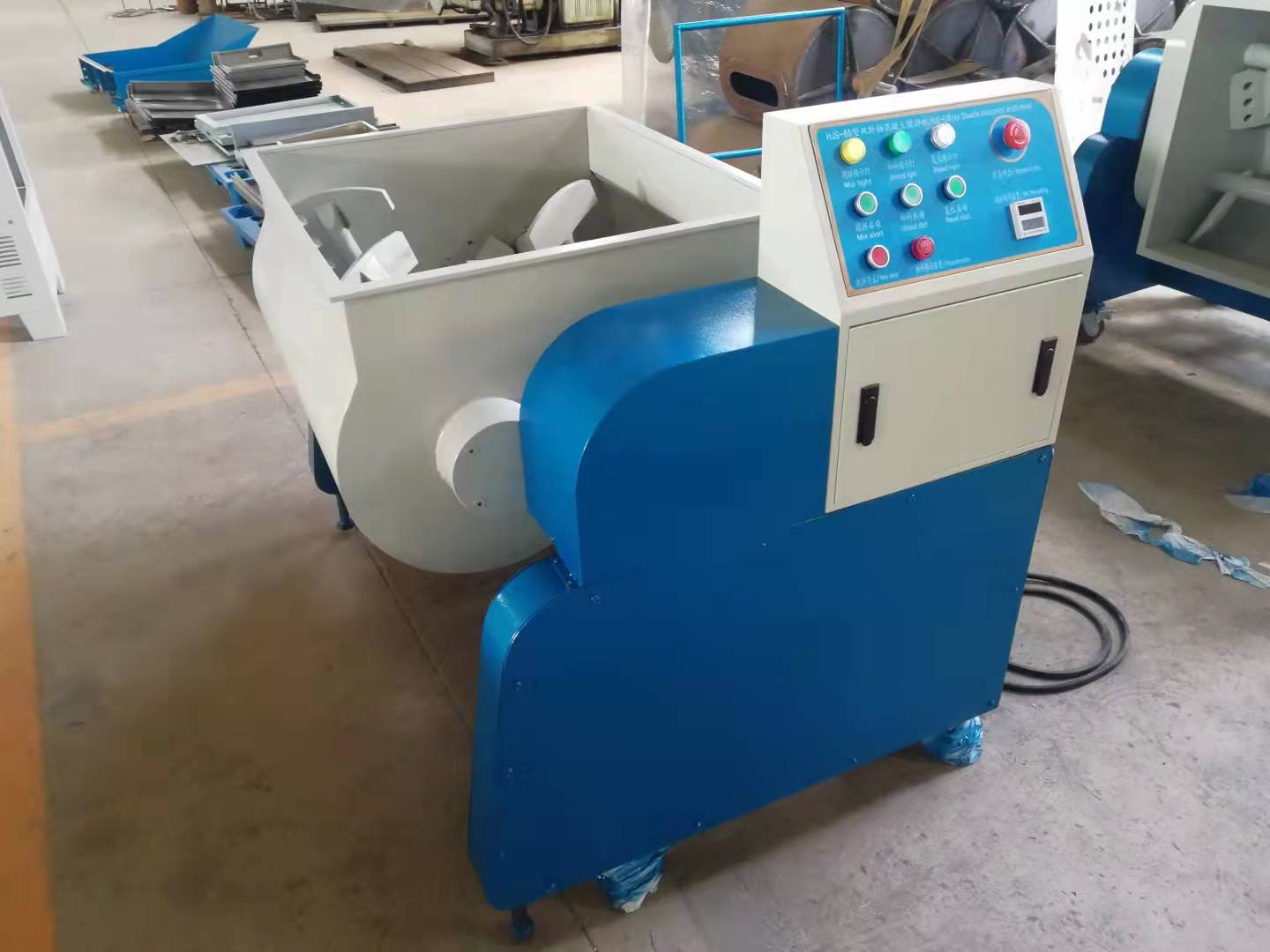

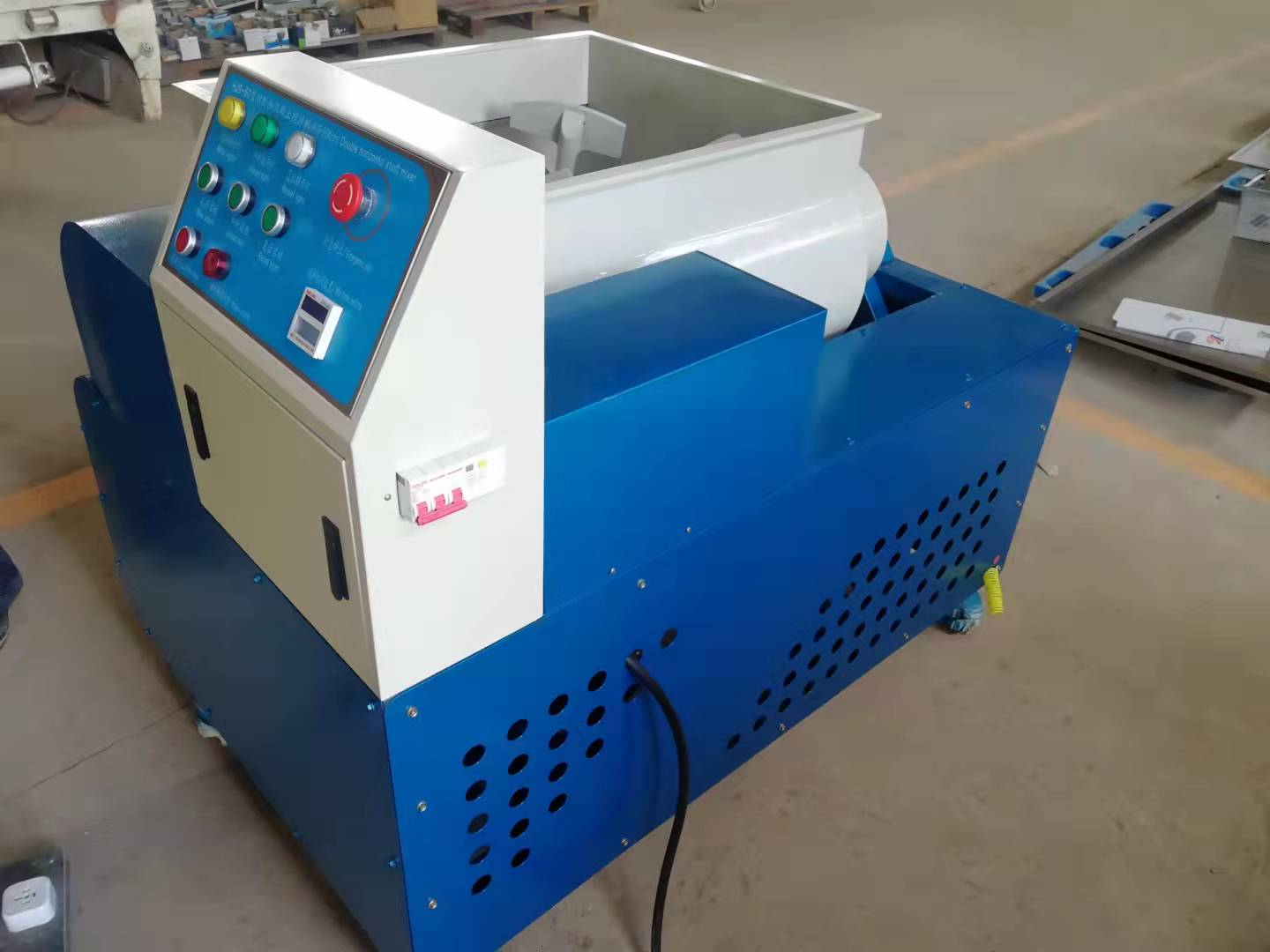

HJS-60 Mobile double-horizontal shafts Concrete Mixer(Lab Twin Shaft Mixer)

The tectonic type of this machine has been included into national compulsory industry

(JG244-2009).The performance of this product meets or even exceeds the standards.Due to its scientific design,strict quality control and unique tectonic type,this mixer of double-horizontal shafts features efficient mixing ,well-distributed mixture,and cleaner discharging and it is suitable for Institutes of scientific researches,mixing plant,detection units,as well as laboratory of concrete.

Technical Parameters:

1. Tectonic Type: Double-horizontal shafts

2. Nominal Capacity: 60L

3. Mixing Motor Power: 3.0KW

4. Discharging Motor Power: 0.75KW

5. Material of work chamber: high quality steel tube

6. Mixing Blade: 40 Manganese Steel(casting)

7. distance between Blade and inner chamber: 1mm

8. Thickness of work chamber : 10mm

9. Thickness of Blade: 12mm

10. Overall Dimensions: 1100×900×1050mm

11. Weight: about 700kg

12. Packing: wooden case
