- Product Description
SBY-20C,SBY-30C,SBY-40C,SBY-60H,SBY-90H Cement Specimens Water Curing Cabinet
Model SBY-20C Technical Parameters1. Power supply: AC220V ± 10%2. Inside dimensions: 520 x 450 x 880mm3. Capacity: 20 drawers, each drawer can hold 6 pieces, namely 20 groups.(Soft practice test mold 40 × 40 x 160)4. Constant temperature water: 20 ℃ ± 1 ℃5. Cooling power: 145W6. Heating power: 300W7. Internal circulation fan: 30W8. Weight: 130kg9. Working environment: laboratory

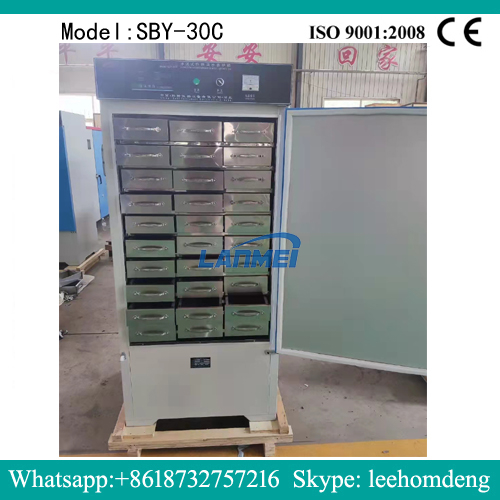

Model SBY-30C Technical Parameters
1. Power supply: AC220V ± 10%2. Inside dimensions: 690 × 550 x 1100mm3. Capacity: 30 drawers, each drawer can hold 6 pieces (soft test mold 40 × 40 x 160). That is 30 groups4. Constant temperature water is 20 ℃ ± 1 ℃5. Cooling power: 216W6. Heating power: 300W7. Internal circulation fan: 45W8. Weight: 140kg9. Working environment: laboratory

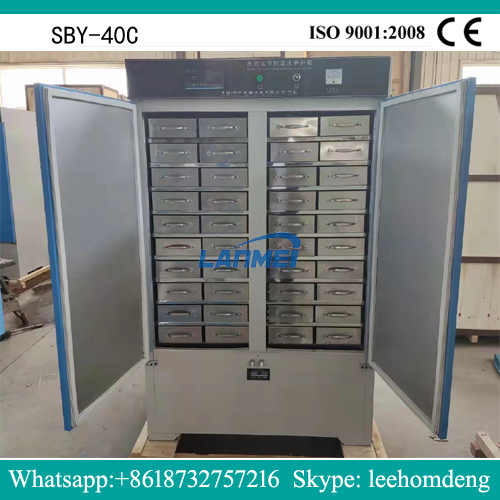

Model SBY-40CTechnical Parameters:1. Power supply: AC220V ± 10%2. The size of the box: 1000 × 500 x 1050mm3. Capacity: 40 drawers, each drawer can hold 6 pieces, namely 40 groups.(Soft practice test mold 40 x40 x 160)4. Constant temperature water: 20 ℃ ± 1 ℃5. Cooling power: 165W6. Heating power: 300W7. Internal circulation fan: 30Wx28. Weight: 150kg

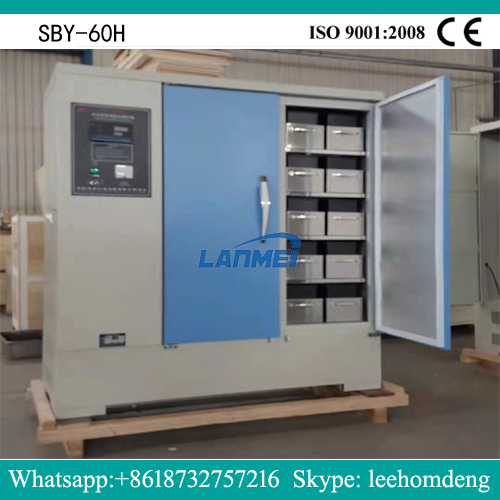

Model SBY-60HTechnical Parameters:
1. Power supply: AC220V ± 10%2. Inside dimensions: 1115 x 510 x 1430mm3.Capacity: Soft practice test mold 40 x 40 x 160 can hold 60 groups,it is 360 test blocks (the box is divided into five layers, each layer has 4 drawers, each drawer has 3 water boxes, and each water box can be placed 6 test blocks, it is 1 group)4. Constant temperature water is 20 ℃ ± 1 ℃5. Cooling power: 310W6. Heating power: 600W7. Internal circulation fan: 30Wx28. Weight: 160kg9. Working environment: laboratory
Model SBY-90H Technical Parameters:1. Power supply: AC220V ± 10%2. Inside dimensions: 1115x 620 x 1430mm3. Capacity: A total of 90 groups, that is 540 test blocks, can be placed in five layers, 6 drawers per layer, three water boxes per drawer, and 6 test blocks per water box, that is 1 group . (Soft practice test mold 40 x 40 x 160)4. Constant temperature water: 20 ℃ ± 1 ℃5. Cooling power: 310W6. Heating power: 600W7. Internal circulation fan: 30Wx28. Weight: 160kg9. Working environment: laboratory
