Computer Controlled Automatic Cement Vicat Needle Apparatus

Computer Controlled Automatic Cement Vicat Needle Apparatus

In a building materials laboratory, the Vicat needle instrument is absolutely necessary. It is used to determine the softening point for materials that do not have a specific melting point.

The instrument is automatically compared with the manual synchronization time comparison test of the 240 groups of the Institute of Cement Science and the New Architecture Materials Research Institute. The relative error rate<1%, which="" proves="" that="" its="" test="" accuracy="" and="" reliability="" meet="" the="" national="" standard="" requirements.="" at="" same="" time="">

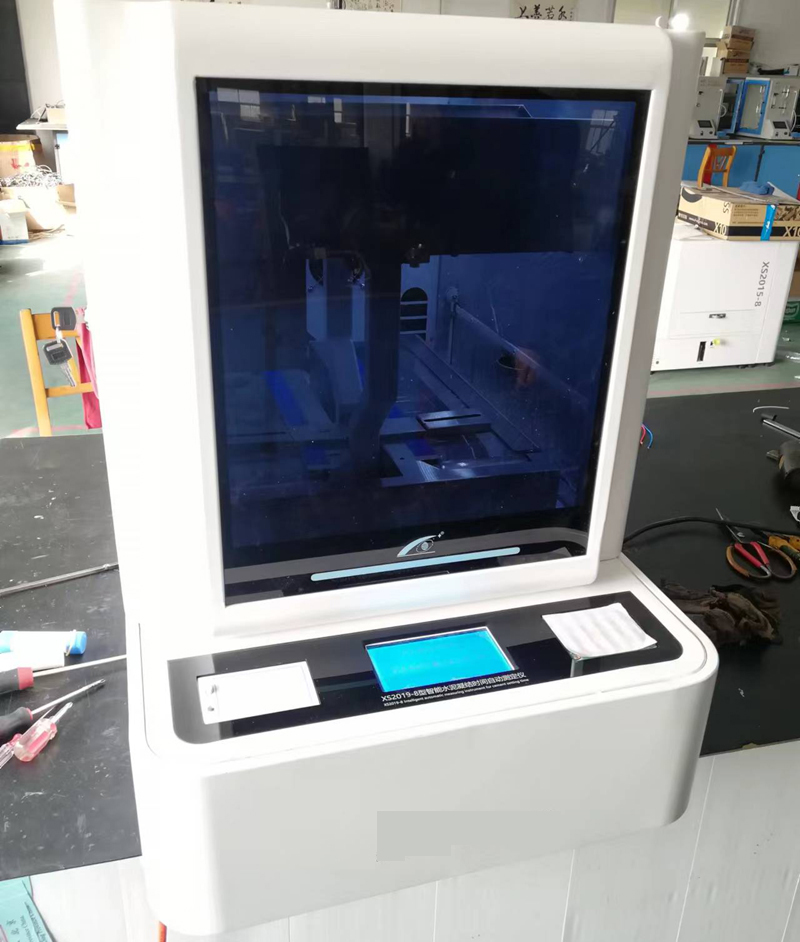

XS2019-8 Intelligent Cement setting time meter is jointly designed by our company and the Building Materials Research Institute. It is the first automatic control equipment in China to fill the gap of the project in my country. This product has won the National Invention Patent (Patent Number: ZL 2015 1 0476912.0), and also won the third prize of scientific and technological progress in Hebei Province.

The main technical parameters :

1. Power voltage: 220V50Hz power: 50W

2. Eight round molds can be placed in the test parts at the same time, and each round mold is automatically alarm.

3. Working room: no dust, strong electricity, strong magnetic, strong radio wave interference

4. Instrument has the function of automatic detection correction

5. Have a fault alarm prompt function

6. The temperature of the test box is 20 ℃ ± 1 ℃, the internal humidity ≥90%, the self -control function

7. Measurement range: 0-50mm

8. Measurement depth accuracy: 0.1mm

9. Running time record: 0-24h.

10. X shaft, Y selection with 16W service motor movement

11. X axis, Y axis uses a roller screw, high accuracy

12. Select imported V -type frequency conversion compressors, power: 80W

13. Overall dimensions: 900*500*640mm

14. Equipment weight: 65kg

The most important thing is to use it correctly so as not to falsify the test results. To learn how to use a Vicat needle apparatus safely and thereby get the desired results

Vicat Needle Apparatusis designed to automatically apply the force to the sample while it records the depth of the needle. Just press a button and wait for the results! This unit allows for further time saving by performing the same test 6 times simultaneously. The Vicat tester is a PC-controlled.
