Product Description

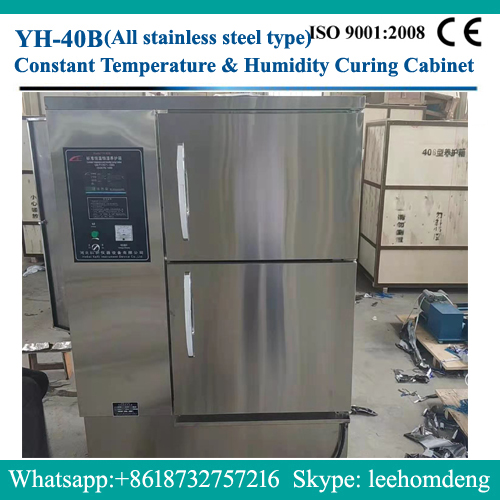

Concrete 40B Curing Chamber For Sale
Concrete Curing Chamber adopts a box (tank) external circulation method, the test piece placing box is made of high-grade 304 stainless steel material, and the automatic control system adopts industrial computer control, which has a high degree of automation. The control system and the freezing and thawing equipment box are installed indoors, and the cold and hot medium box is installed indoors. It consists of an air-cooled condensing unit, a medium pump, a heating medium tank, and a cold medium tank. The cold and hot media are exchanged with the medium (antifreeze) in the test piece placement box through the medium pump to freeze and thaw the water around the test piece. The control is used for the refrigeration and heating temperature control of the cold and hot tanks, and the opening of the medium pump is controlled by the temperature controller, and the cold and hot medium is exchanged with the medium in the sample box to achieve heating or cooling.

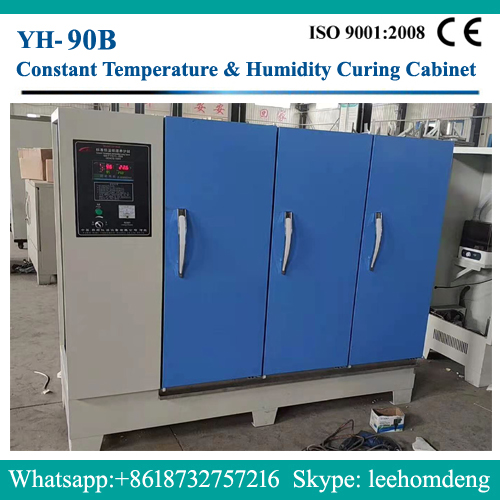

| Model | YH-20B | YH-40B | YH-60B | YH-80B | YH-90B |
| Inner size | 680*520*600 (mm) | 700*550*1100 (mm) | 960*570*1000 (mm) | 1450*580*1350 (mm) | 1650*580*1350 (mm) |
| Capacity | 20 sets of Soft practice test molds /40 pieces 150*150*150 concrete test molds | 40 sets of Soft practice test molds/60 pieces 150*150*150 concrete test molds | 60 sets of Soft practice test molds/90 pieces 150*150*150 concrete test molds. | 150 pieces 150*150*150concrete test molds. | 180 pieces of 150*150*150concrete test molds |
| Temperature range | 16-40 ℃Adjustable accuracy:20 ℃ ± 1 ℃ | 16-40℃ adjustable | 16-40℃ adjustable | 16-40℃ adjustable | 16-40℃ adjustable |
| Humidity range | ≥90% Accuracy: ± 3% | ≥90% | ≥90% | ≥90% | ≥90% |
| Refrigerator power | 125W | 165W | 185W | 260W | 260W |
| Heating power | 600w | 600w | 600w | 1000W | 1000W |
| Humidifying power | 15W | 15W | 15W | 15W | 15W |
| Fan power | 16w | 16w*2 | 16Wx2 | 30W*3 | 30W*3 |
| Weight | 80kg | 150kg | 180kg |
