Product Description

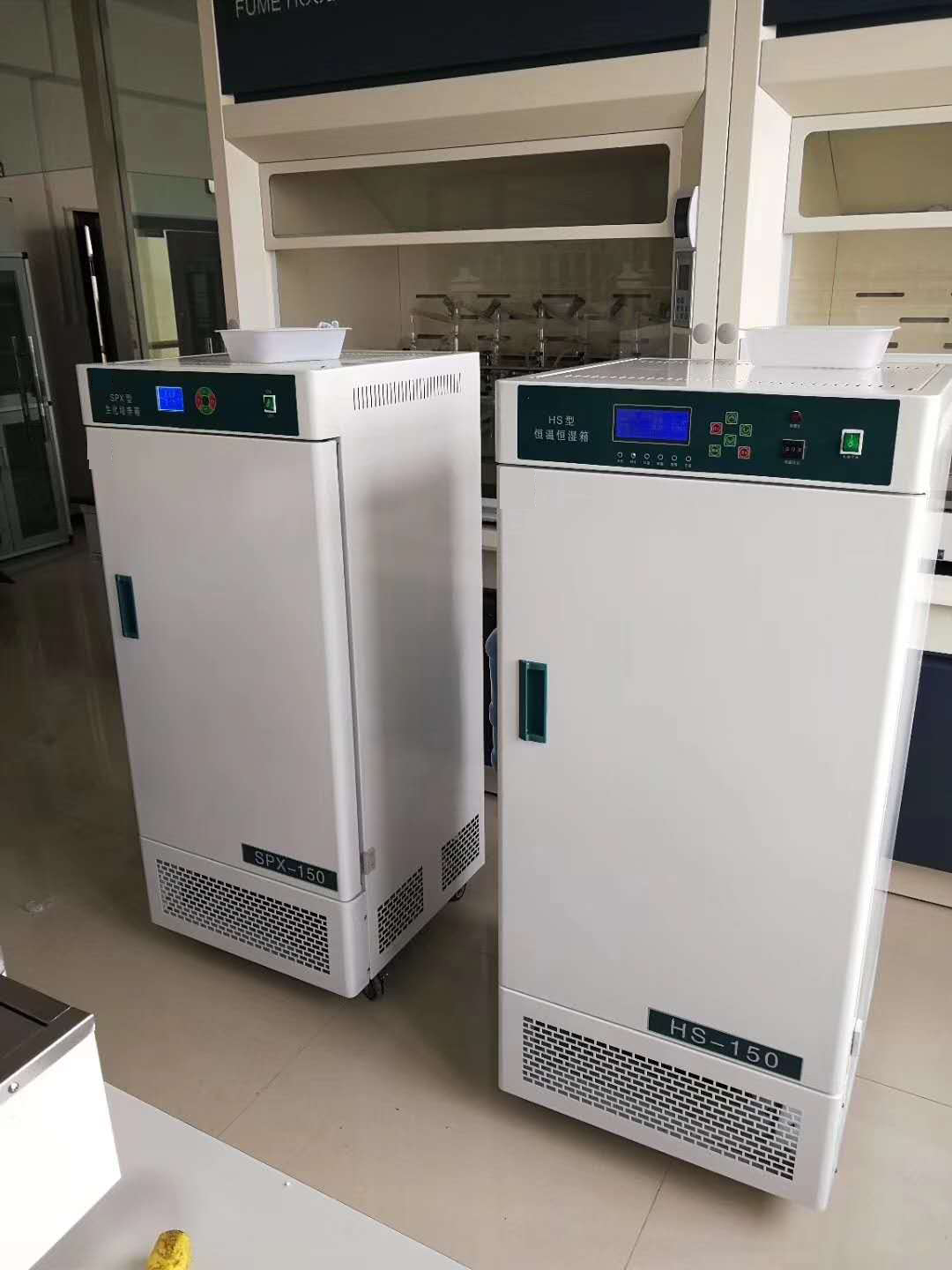

Constant Temperature And Humidity Incubator For Laboratory
一、Structural Features Overview:
The product is consist of the outer box, chamber (workroom), temperature and humidity control devices, heating and cooling systems,humidification and air circulation device and other components.1, This machine is a vertical frame structure, box made of high quality steel sheet punching, surface spray, beautiful shape, generous. Controllers, all kinds of switches, buttons and displayer are installed in the upper box, easy and intuitive.2, the use of mirror stainless steel, semi-circular corners easy to clean, inside adjustable shelves spacing.3, the device records the work process by optional printer and RS485 company communication.4, the device has a separate limit temperature controller. When exceeds the limit temperature,it can be automatically interrupted heating and alarm. Ensure the experiments to carry out safely without accidents.5, the cabinet has cold, hot air ducts. to enhance air circulation and smooth operation with the fan, to improve the indoor temperature and humidity uniformity.6, the back and above with the power line and the fuse holder, below with the drain valve, overflow gap; right middle with water filler gap and equipped with water bucket.7, with over-temperature alarm, compressor delay, Automatic defrost, automatic compressor open protection.8, on the left of the box has a diameter Ф50mm test hole, to provide convenience for testing for users.
二、Main technical parameters
| Model | HS-80 | HS-150 | HS-250 | |
| Tem. range | 5℃-60℃ | |||
| Tem. fluctuation | ±0.5℃ | |||
| Tem. uniformity | ±2℃ | |||
| Humidity range | 40%-90%RH (10-60℃) | |||
| Humidity fluctuation | ±3.0%RH | |||
| refrigeration system | Refrigerating method | Single-stage compressor | ||
| Cooling unit | Air cooled chiller | |||
| Fan | High efficiency centrifugal fan | |||
| Working environment temperature | +5℃-35℃ | |||
| Power supply | AC: 220v 50Hz | |||
| Output power | 1200W | 1500W | 1500W | |
| capacity | 80L | 150L | 250L | |
| Inner size | 475X305X555mm | 475X385X805mm | 475X525X995mm | |
| Safety devices | Compressor overheating protection, overload protection, over temperature protection | |||
| note | Optional printer or RS485/232 communication, can print setting parameters and profiling humidity curve | |||
Product Description
1. Unique internal wind circulation, breeze circulate fan circulation make inner chamber temperature uniformity.
2. Large LCD display,multiple data display at the same time,30-stage program control,round move,ladder operating,with function of loop self-diagnose and sensor fault alarm.
3. Intelligent PID temperature control system, high precise temperature control PT100 sensor equipped, high precise and stability import humidity sensor component to control humidity automaticlly.
4. Double door structure, with high quality stalinite to observe samples, outer door with magnetic strip, convenient to on and off, good sealing.
5.Intelligent defrosting function ensure device long-time run without defrost. Standard mechanical independent temperature limiter provide double protection.
6.Inner humidifying system with small particles, good humidity uniformity, low water consumption and function of alarm when is short of water.
