Drying Oven

Drying Oven

laboratory drying oven (with fan ventilation)

Uses: The drying oven is used in industrial and mining enterprises, research institutes, medical and health units for drying and baking, wax-melting, sterilization and curing.

Characteristics:

1. The shell is made of high quality steel, the surface is with electrostatic spraying, which is beautiful and innovative.2. The outer is with observation window, which can observe the heating of the material at any time.3. Adopt digital display microcomputer PID regulation controller with over-temperature alarm and over temperature protection function. With timing function, the precision temperature control is reliable.

4. Hot air circulation system consists of speed adjustable fan which can continuous operation at high temperature and a reasonable wind tunnel to improve the temperature uniformity of the working room.5. It adopts new synthetic silicone seal strips, can operate long time at high temperature, long life and easy replacement.

6. Can adjust the inlet air and exhaust size of the working room.

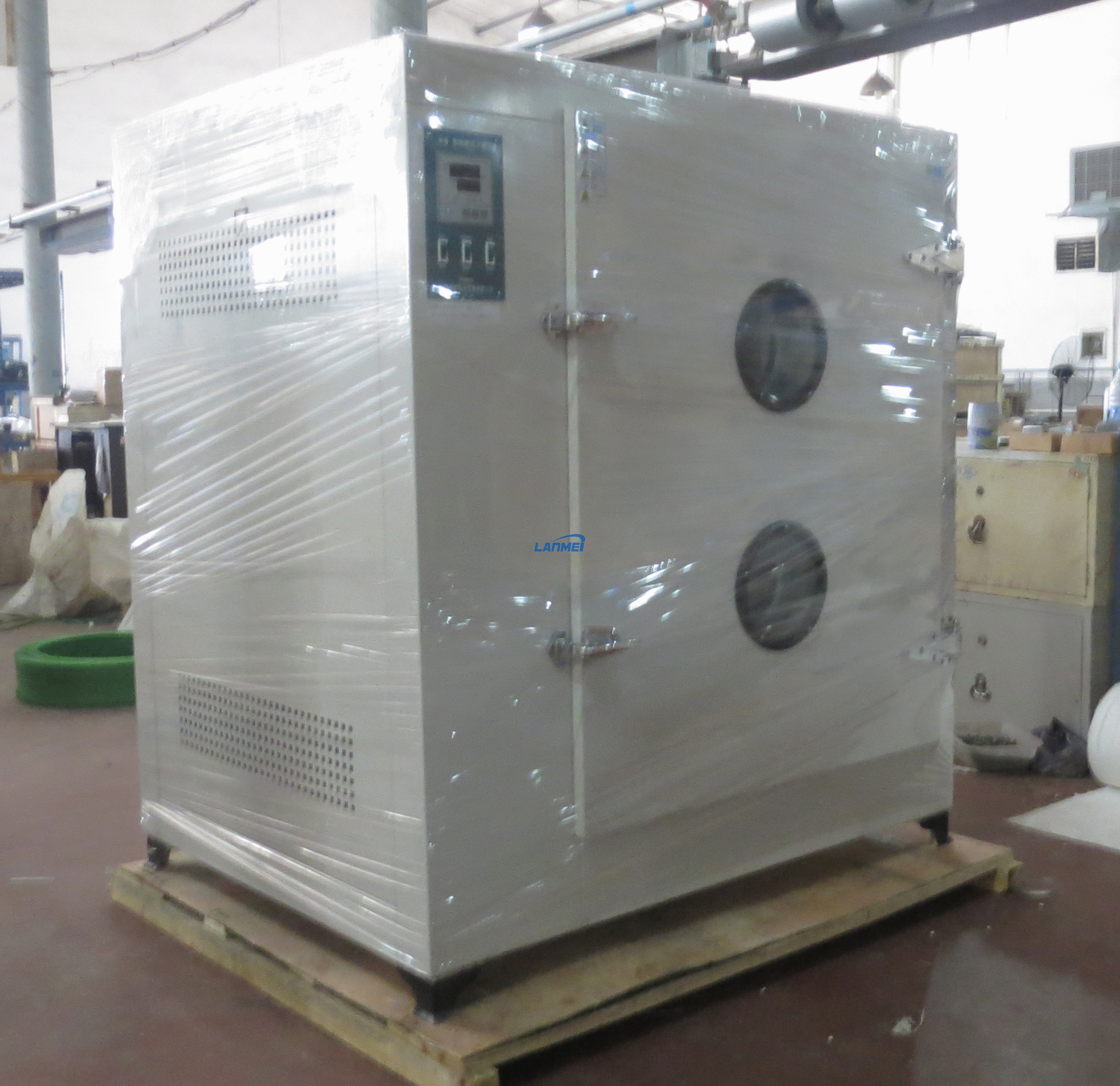

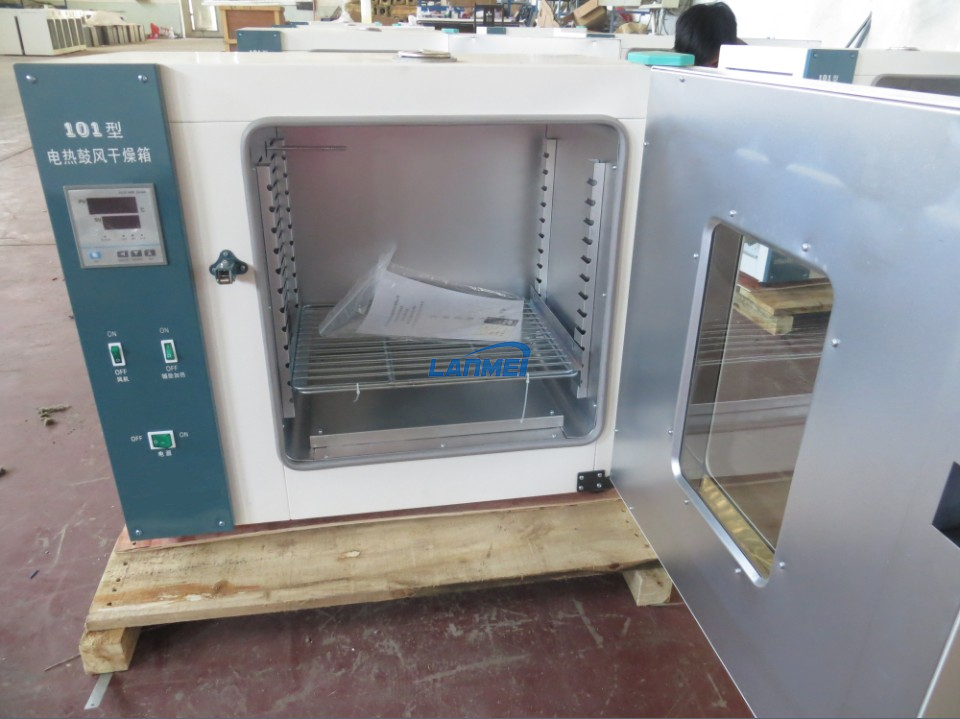

Photos:

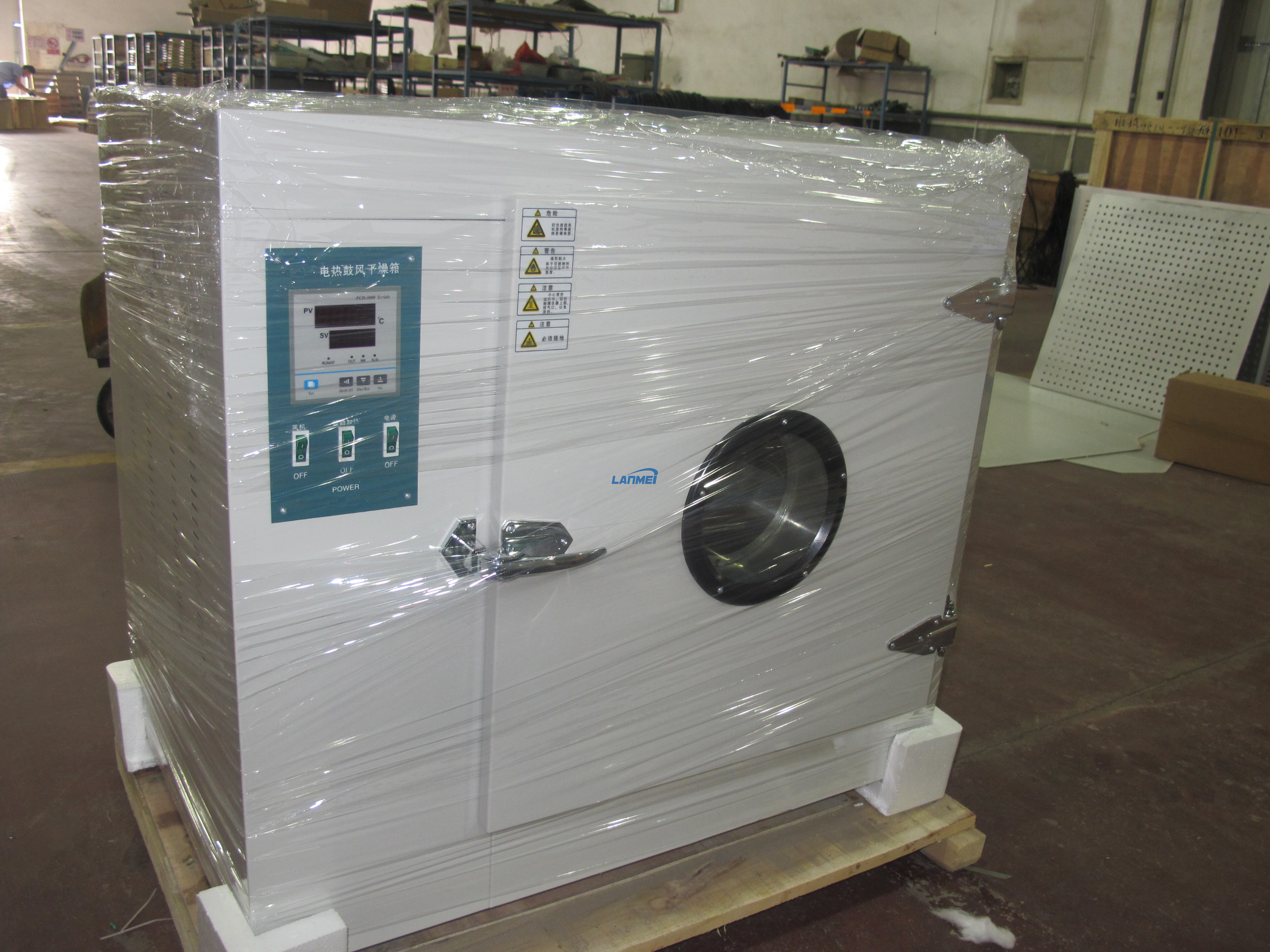

300℃ Drying oven

Uses:

The max temperature of the high temperature blast type drying oven is 300°C, For a variety of test materials placement. Suitable for baking, drying, heat treatment and other heating .It can be used both in industrial and laboratory. (But it does not apply to the place volatile matter in the oven, so as not to cause explosion).

Characteristics:

1. The high temperature electrothermic blast type drying oven consists of the chamber, temperature control system, the blast circulatory system.

2. The sheel adopts high quality cold rolled steel plates, the surface is with electrostatic spraying .The inner container adopts high quality steel.

3. It adopts the rockwool to stay warm between the inner container and the shell.

4. The temperature control system adpots microcomputer single-chip technology, intelligent digital display meter, with PID regulation characteristics, setting time, modified temperature difference, over-temperature alarm and other functions, high precision temperature control, strong function.timer range:0~9999min.

5. air circulatory system puts the heat into the working room through the air funnel and force the exchange cycle of the hot and cold air in the working room, thereby improve the temperature uniformity of the working room temperature field.

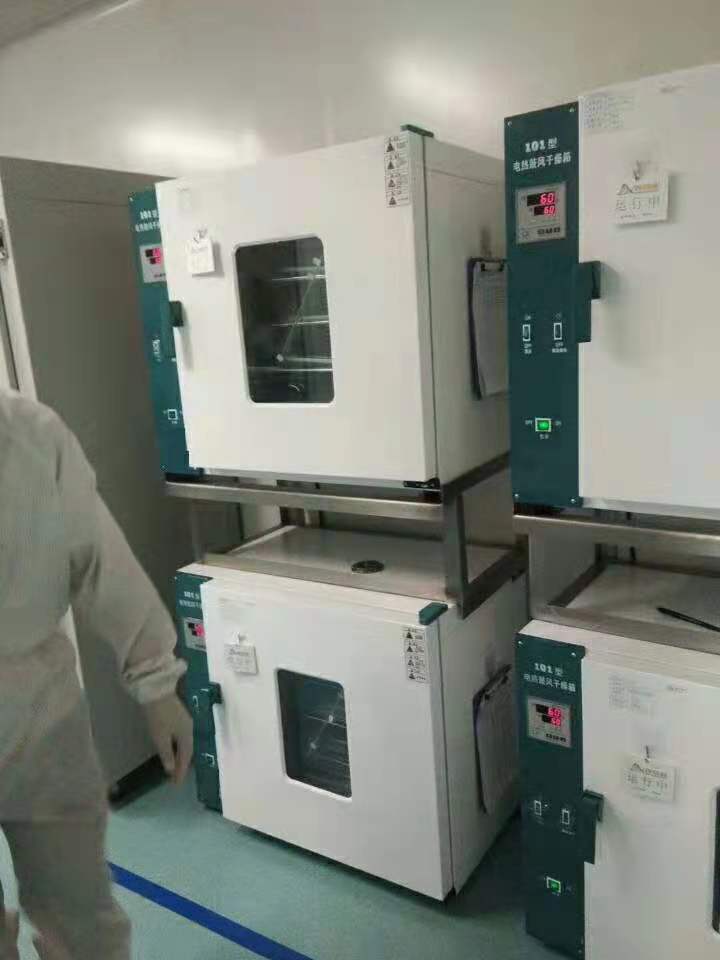

Photos:
