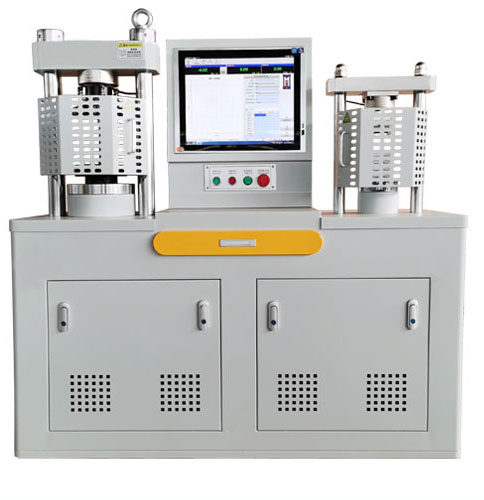

DYE-300S Cement hydraulic Bending and Compression Testing Machine
The testing machine is used to measure the flexural and compressive strength of cement, mortar, brick, concrete and other building materials.
The machine adopts hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, which is composed of four parts: test host, oil source (hydraulic power source), measurement and control system, test equipment, with load, time and test curve dynamic display, timely control function and maximum test force retention function. It is a necessary testing equipment for construction, building materials, highway Bridges and other engineering units.
The testing machine and accessories meet: GB/T2611, GB/T17671, GB/T50081 standard requirements.
Compression / Flexural Resistance：
Maximum test force: 300kN /10kN
Test machine level: Level 0.5
Compressed space: 160mm/ 160mm
Stroke: 80 mm/ 60 mm
Fixed upper pressing plate: Φ108mm /Φ60mm
Ball head type upper pressure plate: Φ170mm/ None
Lower pressure plate: Φ205mm/ None
Mainframe size: 1300×500×1350 mm;
Machine power: 0.75kW (oil pump motor 0.55 kW);
Machine weight: 400kg

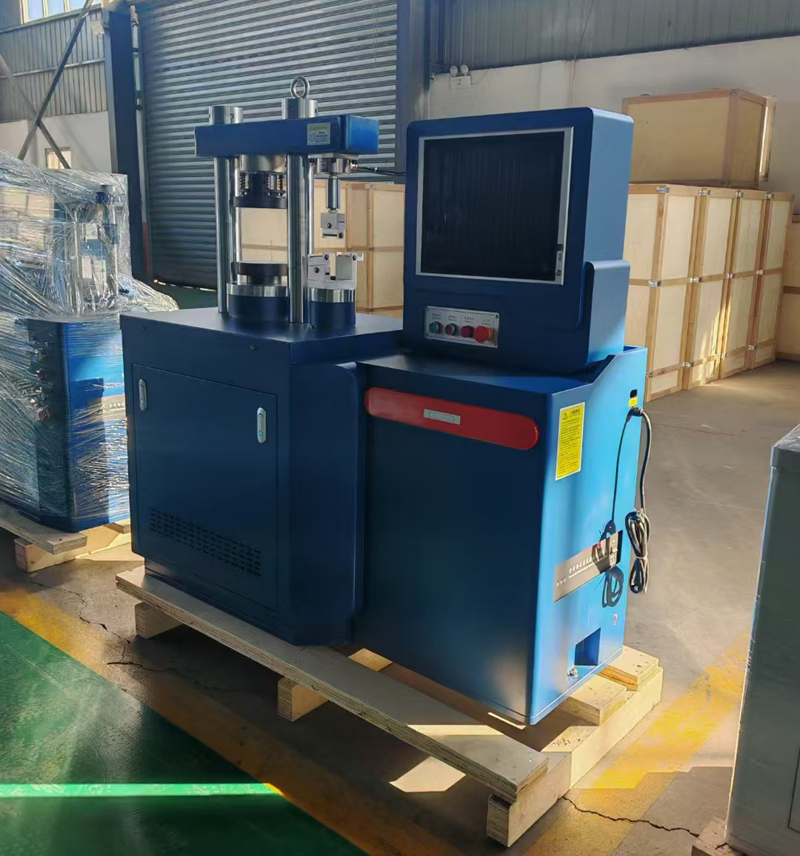

350KN Folding and compression machine
