Product Description

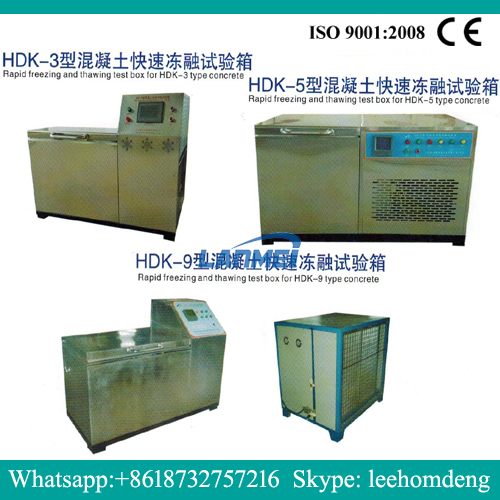

Fast freeze-thaw test chamber
Main technical parameters:Temperature range: -20 ℃ —25 ℃ (adjustable) ; Temperature uniformity:<2>
Material: stainless steel.
This product meets the freeze-thaw resistance test of concrete specimens with a requirement of 100 * 100 * 400.
Characteristics of freeze-thaw test chamber1. Compressor adopts imported original US Youle 10PH compressor, high-efficiency fluorine-free 404A refrigerant, green environmental protection, low carbon energy saving.2. All pipes and liners are made of stainless steel, equipped with stainless steel large-area filters.3. Microcomputer control, temperature digital display, adjustable temperature inside the box, automatic door lifting device, reduce labor, convenient and reliable, only need to press one switch to achieve, high density insulation layer, good insulation effect, energy saving and environmental protection.4. Reasonable evaporative condenser system design, fast cooling speed. Ensure compliance with standards.
Capacity:
Sample capacity (100 * 100 * 400) | Antifreeze required quantity | Peak power |
28 pieces | 120 liters | 5KW |
16 pieces | 80 liters | 3.5KW |
10 pieces | 60 liters | 2.8KW |
