Product Description

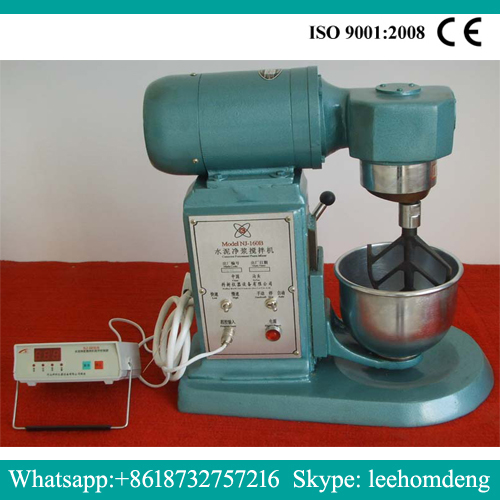

Hot Sale Digital Electric Cement Paste Mixer
一、Use and scopeThis machine is one of the special equipments implemented in accordance with GB1346-89. It is a new type of double-rotation and double-speed clean pulp mixer manufactured according to the main technical parameters of GB3350.8. It mixes cement and water according to the standard and stirs it into a uniform test slurry, which is used to measure the setting time of the standard consistency of water and the production of stability test blocks. It is a cement production plant, a construction unit, and a related college Indispensable equipment for research laboratories.
二、Main specifications and technical parameters1. Stirring blade rotation speed and time:2. Stirring leaf degree: 111mm3.M16 × 1 connecting thread between stirring blade and blade shaft4. Stirring pot inner diameter × depth: 160 × 139mm5. Wall thickness of mixing pot: 1mm6.Working gap between mixing blade and mixing pot 2 ± 1mm7.Dimensions 472 × 280 × 458mm
8.Motor power: fast: 370W slow speed: 170w
9.Net weight: 65kg10.Power supply: 380V
Mixing speed | revolutionr/min | rotationr/min | One time automatic control program time S |
low | 62±5 | 140±5 | 120 |
stop | |||
quick | 125±10 | 285±10 | 120 |
