Product Description

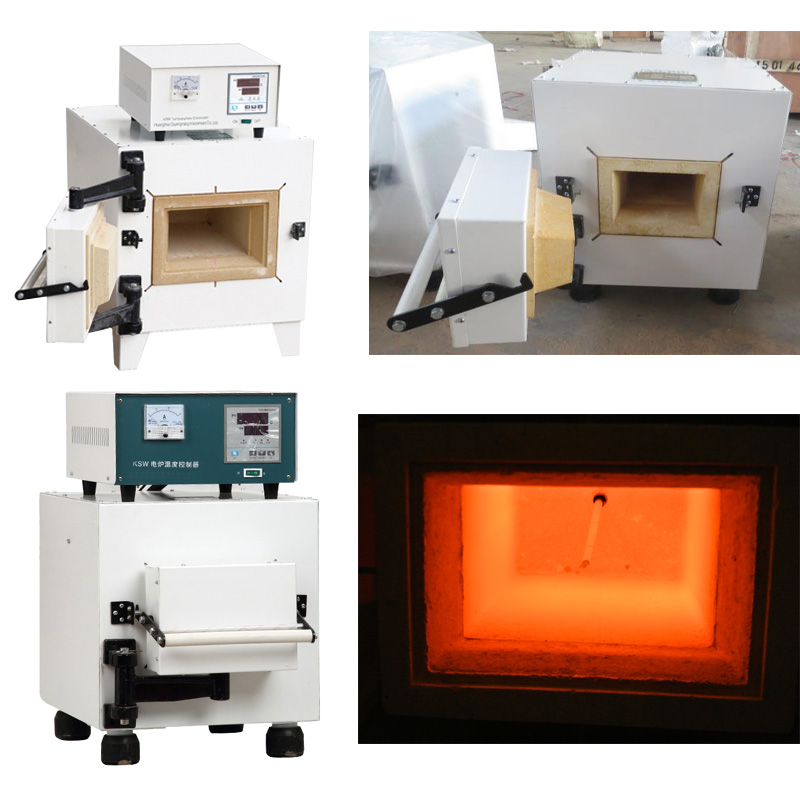

Hot Sale Laboratory Muffle Furnace High Temperature Furnace
Ⅰ. Introduction
This series of furnace is used for element analyzing in labs, mineral enterprises and science research institutes; other applications include small size steel heating, annealing and tempering.
It is equipped with temperature controller and thermocouple thermometer, we can supply the whole set.
Ⅱ. Main Technical Parameters
Model | Rated power (kw) | Rated tem. (℃) | Rated voltage(v) | Working voltage(v) | P | Heating-up time(min) | Working room size(mm) |
SX-2.5-10 | 2.5 | 1000 | 220 | 220 | 1 | ≤60 | 200×120×80 |
SX-4-10 | 4 | 1000 | 220 | 220 | 1 | ≤80 | 300×200×120 |
SX-8-10 | 8 | 1000 | 380 | 380 | 3 | ≤90 | 400×250×160 |
SX-12-10 | 12 | 1000 | 380 | 380 | 3 | ≤100 | 500×300×200 |
SX-2.5-12 | 2.5 | 1200 | 220 | 220 | 1 | ≤100 | 200×120×80 |
SX-5-12 | 5 | 1200 | 220 | 220 | 1 | ≤120 | 300×200×120 |
SX-10-12 | 10 | 1200 | 380 | 380 | 3 | ≤120 | 400×250×160 |
SRJX-4-13 | 4 | 1300 | 220 | 0~210 | 1 | ≤240 | 250×150×100 |
SRJX-5-13 | 5 | 1300 | 220 | 0~210 | 1 | ≤240 | 250×150×100 |
SRJX-8-13 | 8 | 1300 | 380 | 0~350 | 3 | ≤350 | 500×278×180 |
SRJX-2-13 | 2 | 1300 | 220 | 0~210 | 1 | ≤45 | ￠30×180 |
SRJX-2.5-13 | 2.5 | 1300 | 220 | 0~210 | 1 | ≤45 | 2-￠22×180 |
XL-1 | 4 | 1000 | 220 | 220 | 1 | ≤250 | 300×200×120 |
