Product Description

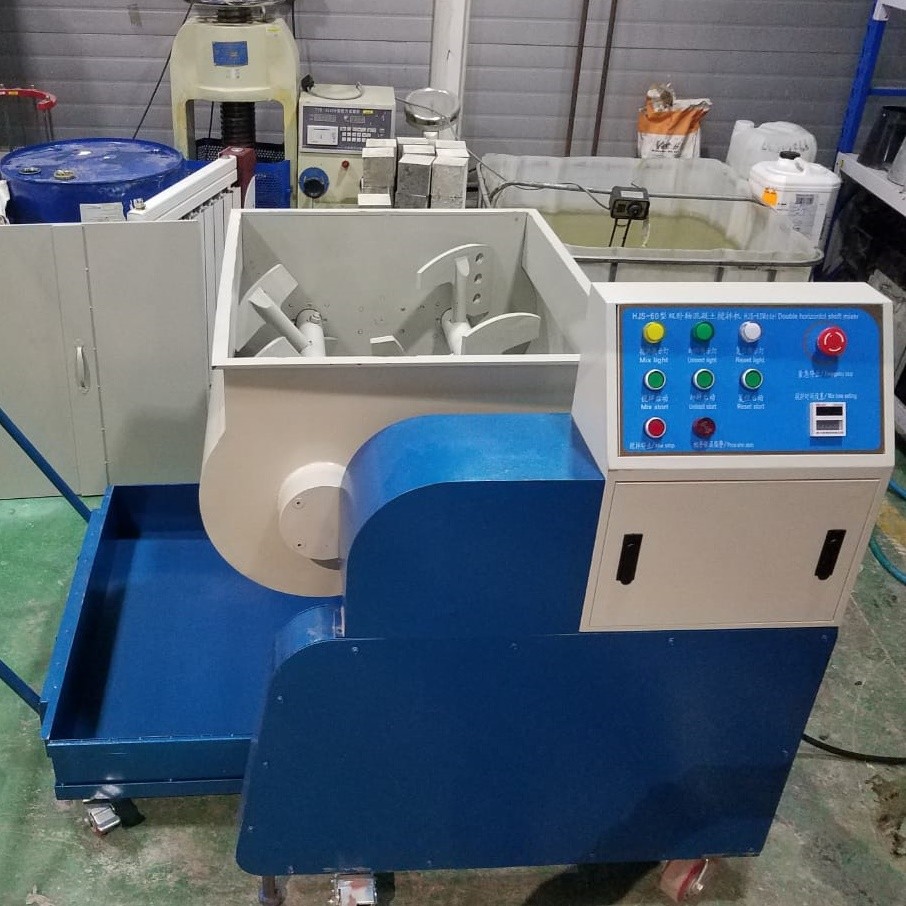

Laboratory Cement Concrete Mixer Machine
1、 Summarize

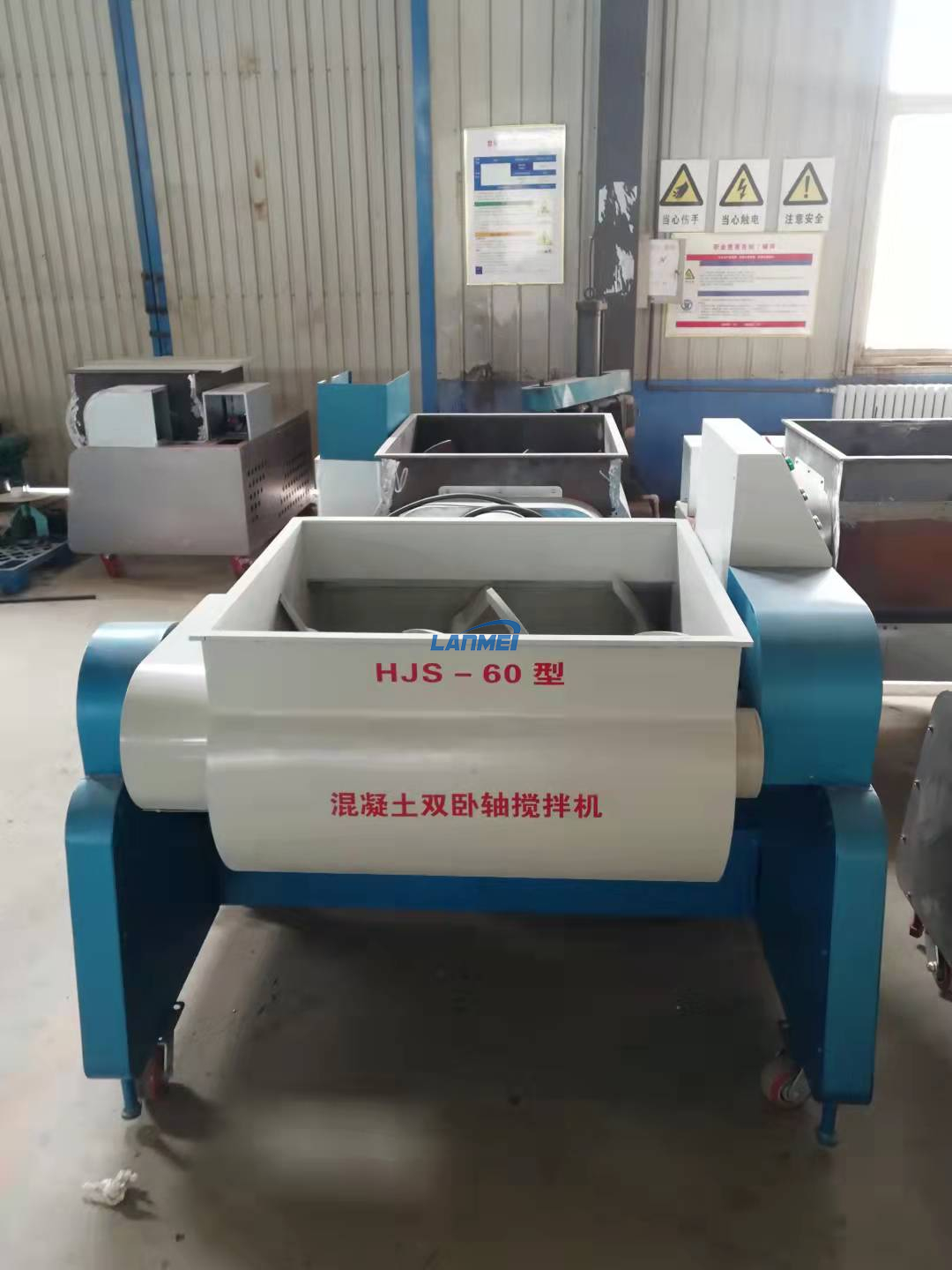

Model HJS – 60 double shaft concrete test using mixer is special test equipment designed and producted to cooperate to promote implementation the《concrete test using mixer》JG244-2009 construction industry standards issued by housing and urban-rural development of the People’s Republic of China.
2、 Technical Parameters
1、 Mixing blade turning radius：204mm；
2、 Mixing blade rotate speed：outer 55±1r/min；
3、 Rated mixing capacity：（discharging）60L；
4、 Mixing motor voltage/power：380V/3000W；
5、 frequency：50HZ±0.5HZ；
6、 discharging motor voltage/power：380V/750W；
7、 Max particle size of mixing：40mm；
8、 Mixing capacity：Under the condition of normal use, within 60 seconds the fixed quantity of concrete mixture can be mixed into homogeneous concrete.
