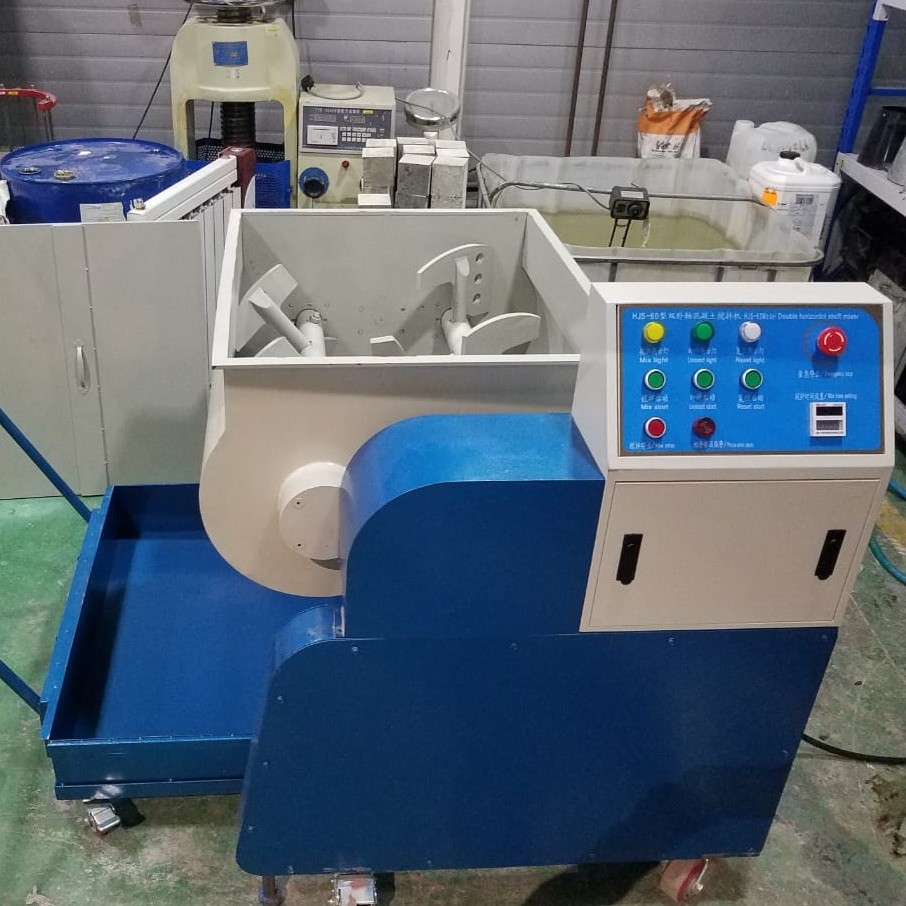

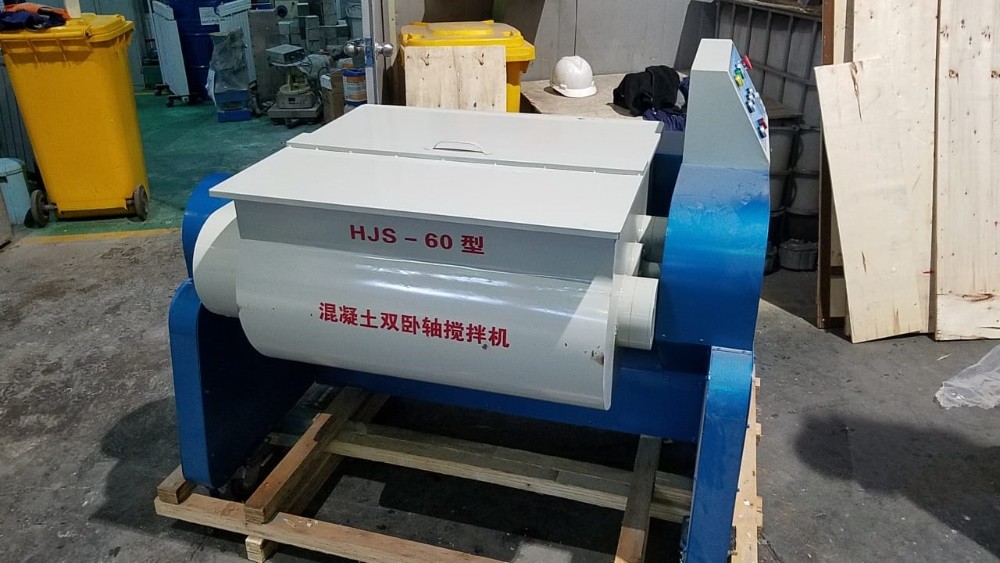

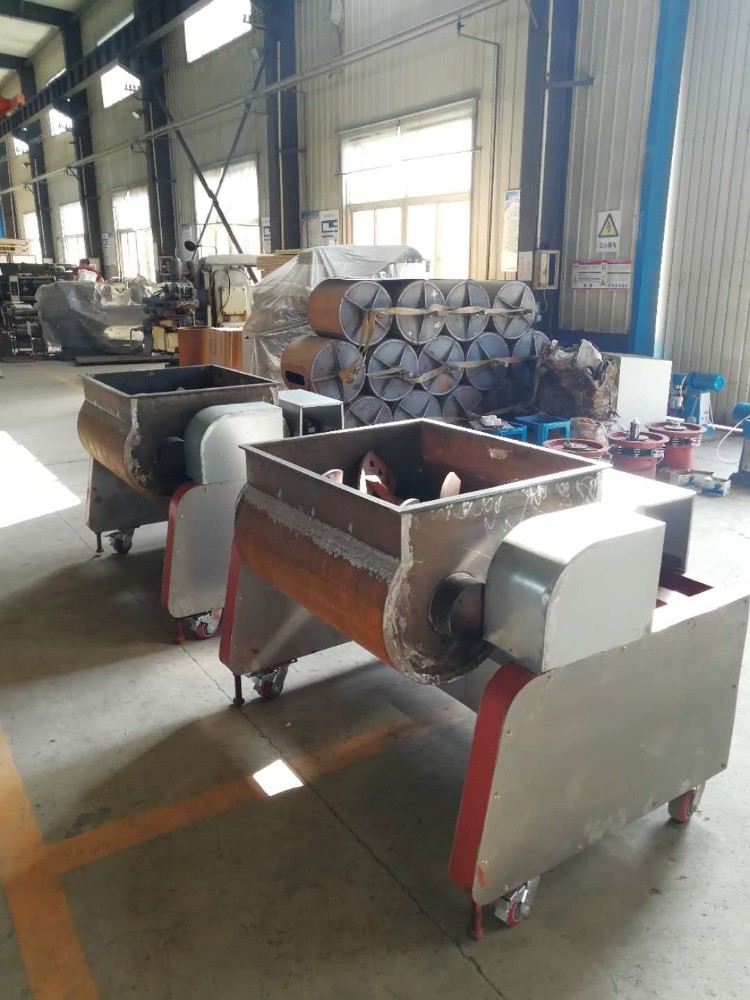

Laboratory Mini Concrete Mixer

Laboratory Mini Concrete Mixer

The tectonic type of this machinehas been included into national compulsory industry

(JG244-2009).The performance of this product meets or even exceeds the standards.Due to its scientific design,strict quality control and unique tectonic type,this mixer of double-horizontalshafts features efficient mixing ,well-distributed mixture,and cleaner discharging and it is suitable forInstitutes of scientific researches,mixing plant,detection units,as well as laboratory of concrete.

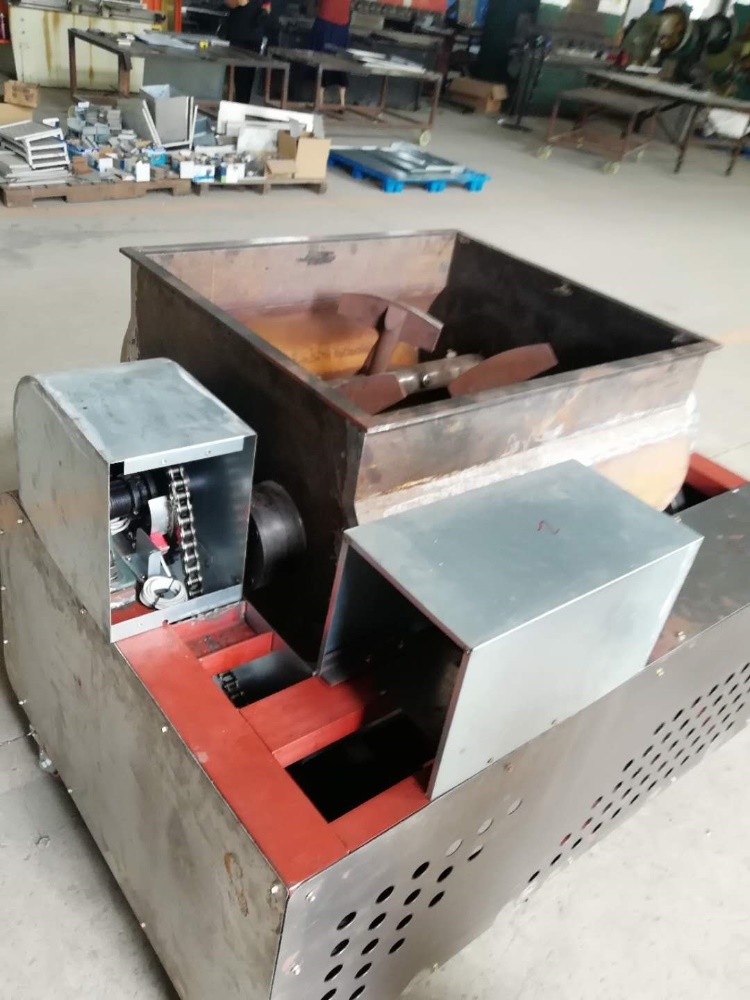

Mixer is mainly composed of retarding mechanism, mixing chamber, worm gear pair, gear, sprocket, chain and bracket, etc.Through the chain transmission, the machine mixing pattern for motor drive axle shaft cone drive, cone by gear and chain wheel drives the stirring shaft rotation, mixing materials.Unloading transmission form for motor through a belt drive reducer, reducer by chain drive stirring the rotate, flip and reset,unloadthe material.

Technical Parameters:

1.Tectonic Type:Double-horizontal shafts

2.Nominal Capacity:60L

3.Mixing Motor Power:3.0KW

4.Discharging Motor Power:0.75KW

5.Material of work chamber:high quality steel tube

6.Mixing Blade:40 Manganese Steel(casting)

7.Distance between Blade and inner chamber:1mm

8.Thickness of work chamber:10mm

9.Thickness of Blade:12mm

10.Overall Dimensions:1100×900×1050mm

11.Weight:about 700kg

12. Packing: wooden case
