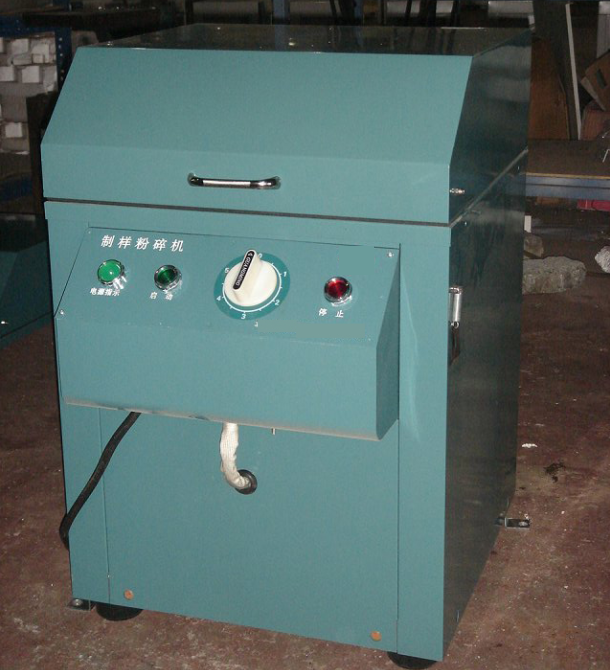

Laboratory Mini Pulverizer Ore Sample Preparation And Powder Grinding Machine
Product Description
Laboratory Mini Pulverizer Ore Sample Preparation And Powder Making Machine Grinding Mill Machine
Characteristics:
1.Theshell is made ofhighqualitysteel plate,thesurfaceis withelectrostatic spraying, attractive appearance.2.It adopts Y90L-6 three-phase motor, safe and reliable.3.Motor driveneccentrichammervibrationthegrinding chamber, and back and forthextrusion, grinding,the output size is80-200mesh.4.The internal structureis reasonableand high efficiency,fast, easy removal, thebasedoesn’t need to befixed, runningsmoothly, withoutfeeling when touching the shell.
Model | FM-1 | FM-2 | FM-3 |
Input size(mm) | <15<> | ||
Output size(mesh) | 80-200 | ||
Feed quantity(g) | <150<> | <150*2<> | <150*3<> |
Power | 380V/50HZ | ||
Hardness of earthen bowl | HRC30-35 | ||
Impact value | J/cm²≥39.2 | ||
Wiring | Three-phase four-wire | ||
Overall dimension(mm) | 450*450*665 | ||
Motive power | Y90L-6 | ||
Weight of whole machine(kg) | 120 | 124 | 130 |
