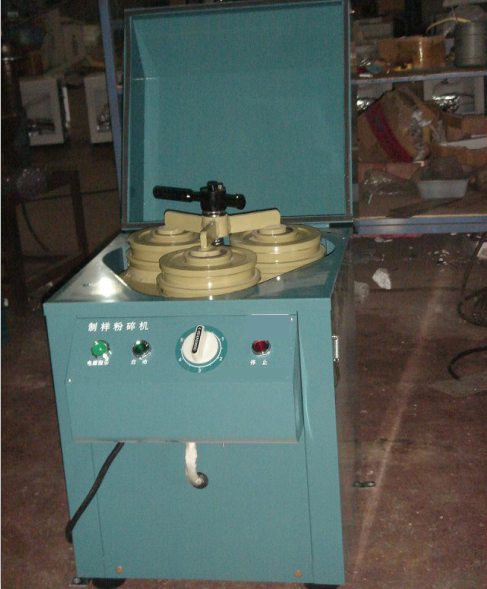

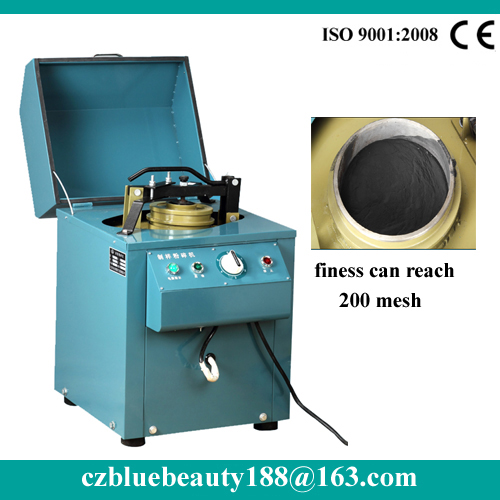

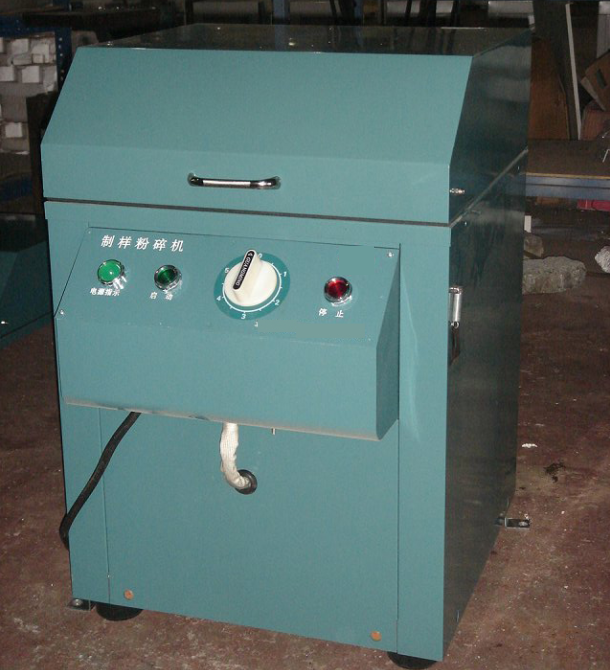

Product Description
Laboratory Sample Pulverizer is a small lab grinding machine for grinding the ore/material samples into powder, which has been widely used in the laboratory of the geology, mining, metallurgy, coal, power, chemistry and building industries, for the none pollution sample testing.
一、Overview
This machine is an indispensable smashing sample preparation equipment for the production and research of geological, mining, metallurgy, coal, grain, medicinal materials and other industries.
This machine adopts Y90L-6 motor to drive the eccentric tamper, so that the hitting block, the hitting ring and the material box collide with each other, and the smashing task is completed by round-squeezing and flat grinding.
二、Main parameters
Model | FM-1 | FM-2 | FM-3 |
Power voltage | Three-phase 380V 50HZ | ||
Motive power | 1.5KW 6 grade | ||
Input size | ≤10mm | ||
Output size | 80-200 mesh | ||
Capacity of each bowl | Heavy material<150g light="" material=""> | ||
Number of Bowl | 1 | 2 | 3 |
Dimensions | 500×600×800（mm） | ||
