Product Description

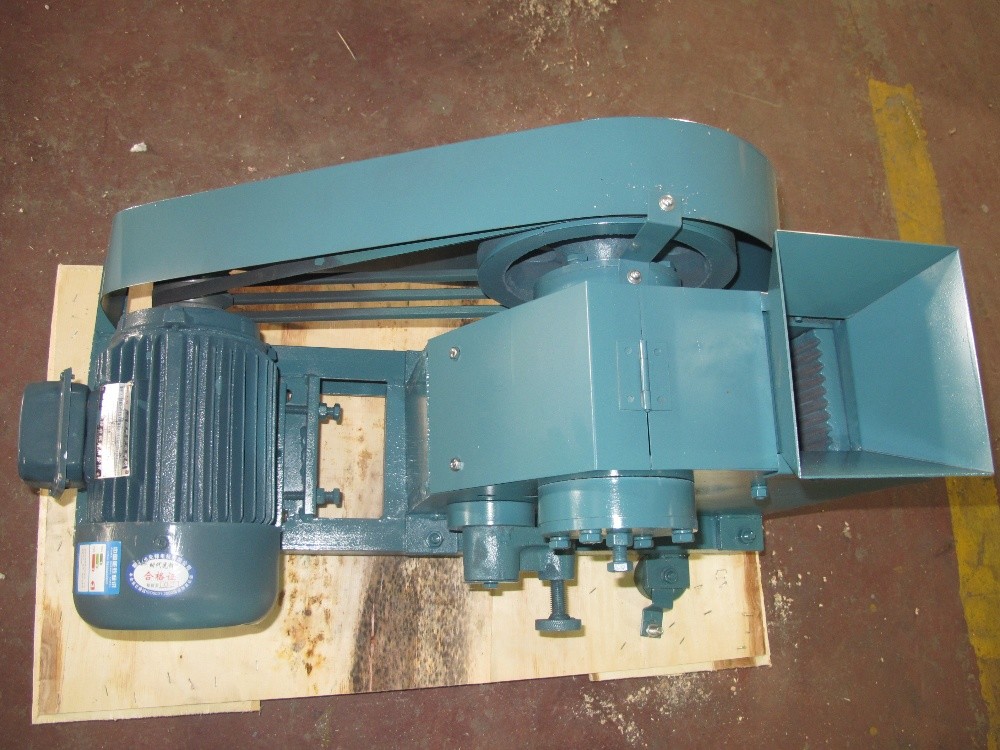

Laboratory Small Stone Ore Building Materials Jaw Crusher
Jaw crusher is used in mining, metallurgy, geology, building materials, light industry, chemical industry and engaged in the inspection of the unit. The machine is made of weld steel, high manganese steel, cast iron. each unit are strictly commissioning, before leaving the factory after the full qualified, as a result of the quality of the unit itself, our plant is responsible for three guarantees. It is normal wear and tear of wearing parts, need to buy or additions can contact with us, our plant responsible for supplying transport agent. Our purpose is: quality first, the customer first.
Characteristics:
1.The dental plate is made of high manganese steel with big crushing strength and good result.
2. The discharging particle sizecould be adjusted by regulating handle.
| Model (Inlet size) | Voltage(V) | Power(kw) | Input size(mm) | Output size(mm) | Spindle speed(r/min) | capacity(kg/hour) | Overall dimensions (mm) D*W*H |
| 100*60mm | 380V/50HZ | 1.5 | ≤50 | 0.1~15 | 600 | 45~550 | 750*370*480 |
| 100*100mm | 380V/50HZ | 1.5 | ≤80 | 3~25 | 600 | 60~850 | 820*360*520 |
| 150*125mm | 380V/50HZ | 3 | ≤120 | 4~45 | 375 | 500~3000 | 960*400*650 |
