Product Description

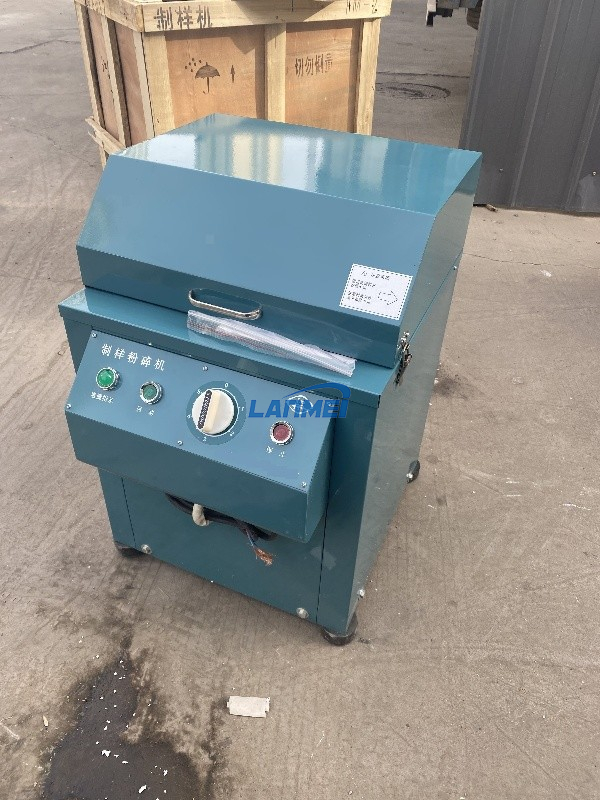

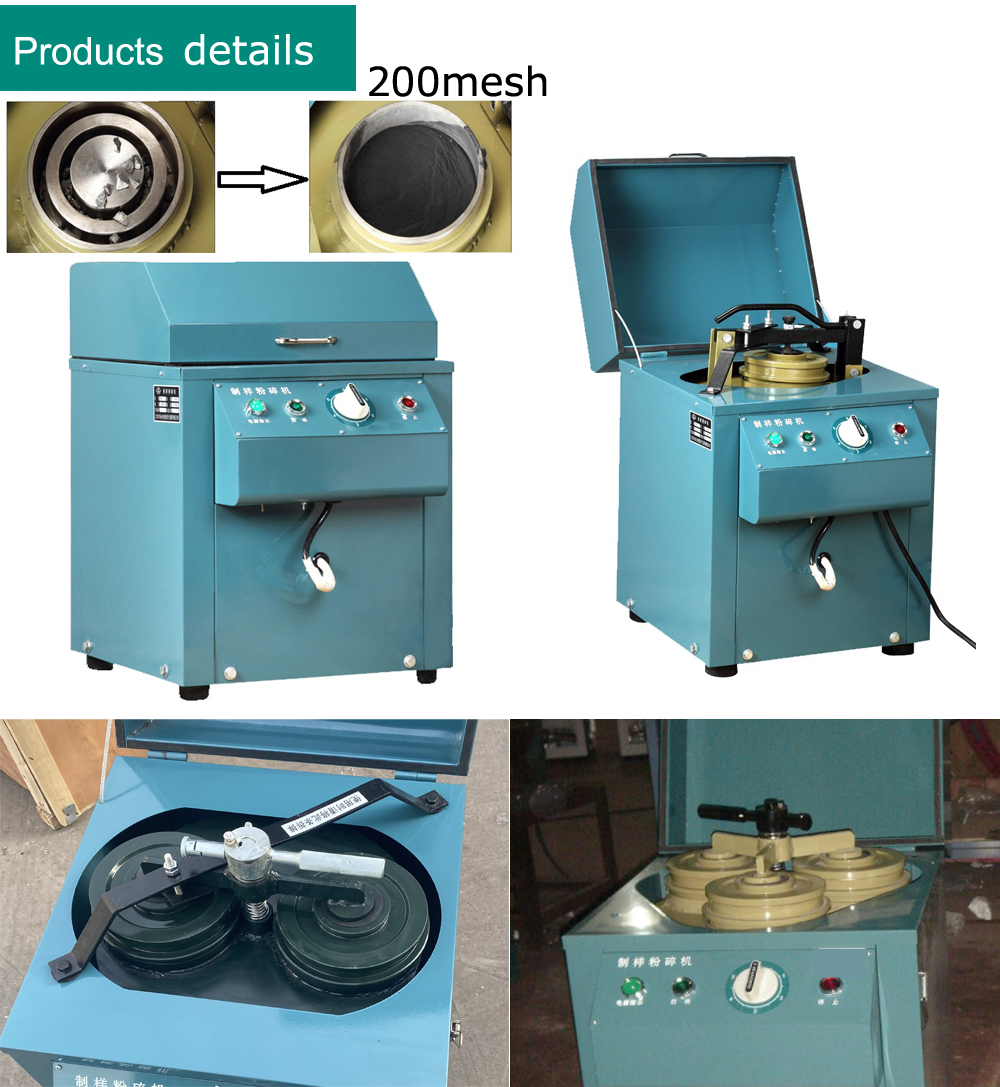

Laboratory Testing Machine Sample Pulverizer
一、Overview
This machine is an indispensable smashing sample preparation equipment for the production and research of geological, mining, metallurgy, coal, grain, medicinal materials and other industries.

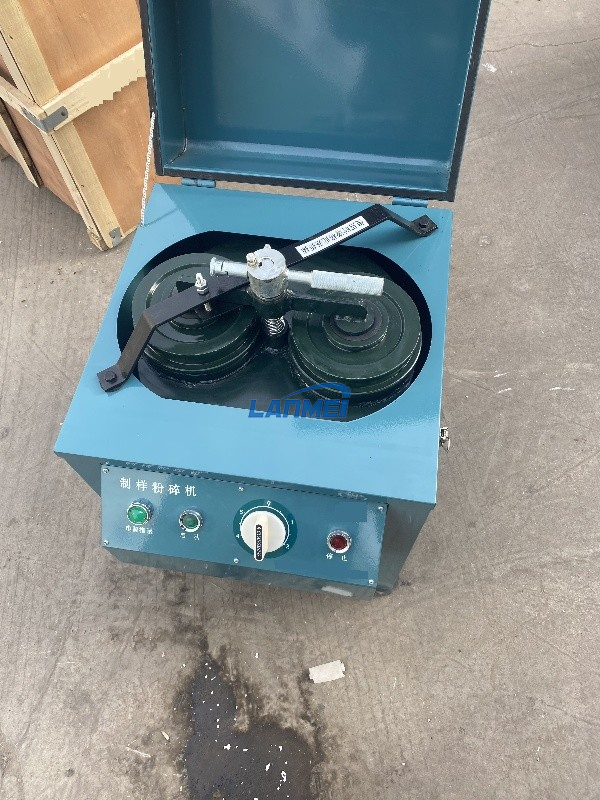

This machine adopts Y90L-6 motor to drive the eccentric tamper, so that the hitting block, the hitting ring and the material box collide with each other, and the smashing task is completed by round-squeezing and flat grinding.
The working mode of the sealed test sample pulverizer is vibration grinding. The machine is driven by an electric motor. When the motor rotates at a high speed, the centrifugal force and vibration force generated by the eccentric hammer mounted on the shaft cause the vibrating steel body to generate an exciting force, and the abrasive material pressed on the vibrating steel body forms vibration and grinding. Features.
二、Main parameters
Model | FM-1 | FM-2 | FM-3 |
Power voltage | Three-phase 380V 50HZ | ||
Motive power | 1.5KW 6 grade | ||
Input size | ≤10mm | ||
Output size | 80-200 mesh | ||
Capacity of each bowl | Heavy material<150g light="" material=""> | ||
Number of Bowl | 1 | 2 | 3 |
Dimensions | 500×600×800（mm） | ||
