Small Rock Crushing Machine/lab Sample Crushing Jaw Crusher for Iron Ore Mineral
Product Details
Product Description
Small Rock Crushing Machine/lab Sample Crushing Jaw Crusher for Iron Ore Mineral

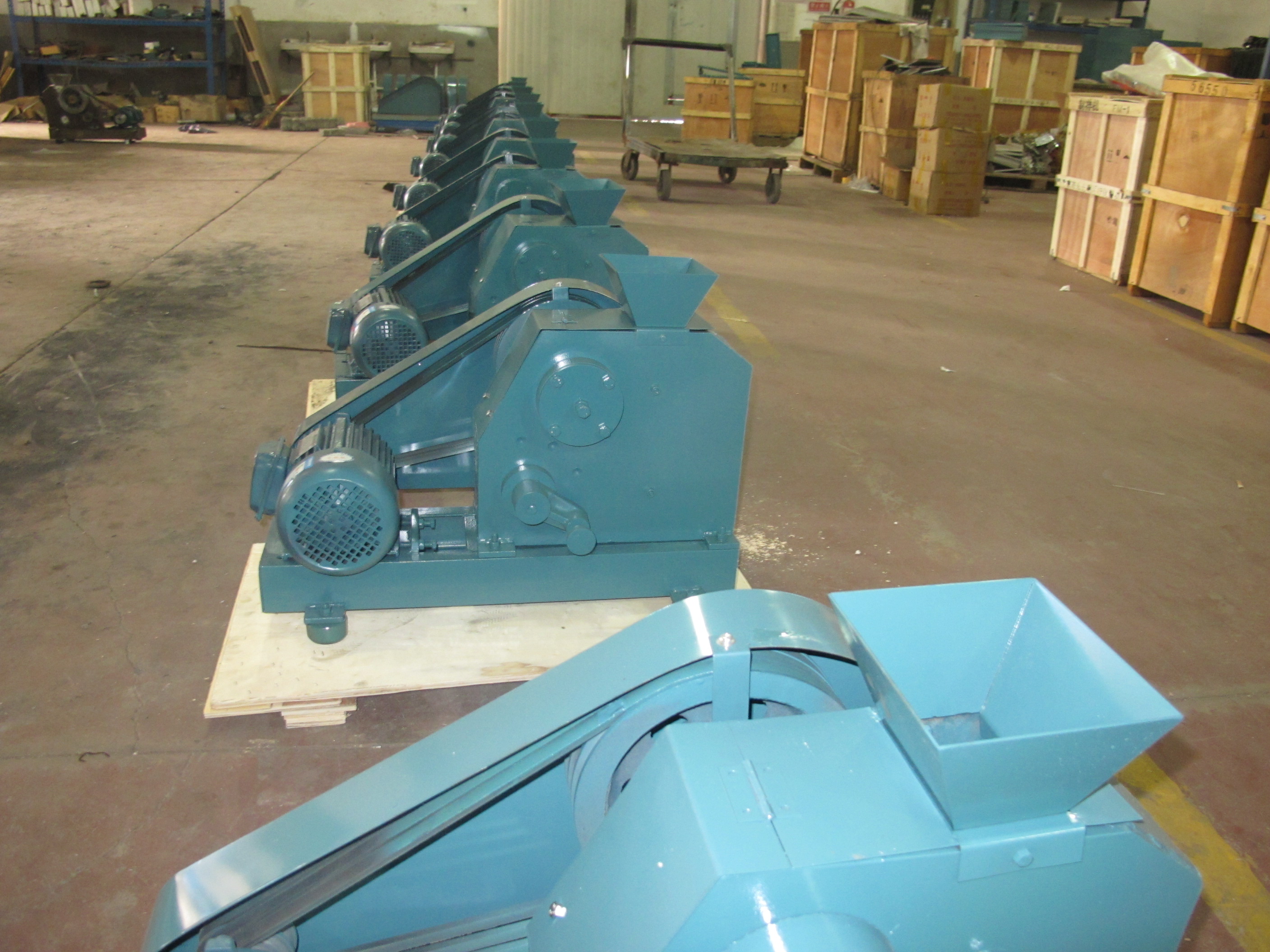

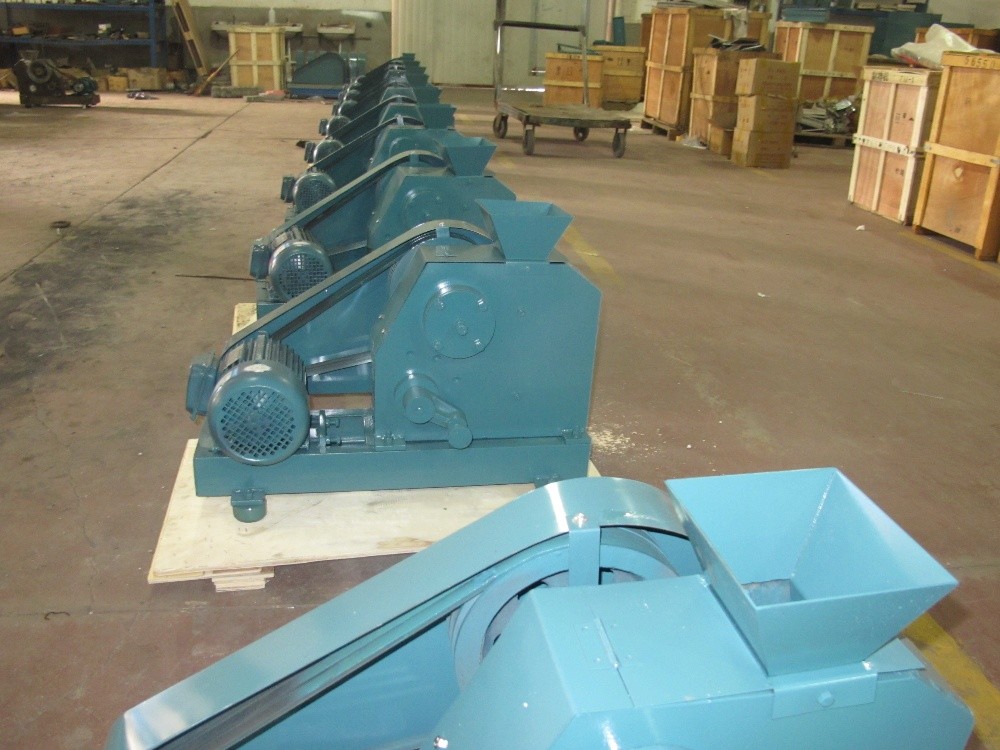

The laboratory jaw crusher is designed for fast crushing of aggregates, ores, minerals, coal, coke, chemicals and other similar materials. It is compact and of rugged construction for general laboratory or small pilot plant operations.Two jaws of manganese steel are provided in this laboratory jaw crusher.
laboratory jaw crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward strokes with a rocking action exerts pressure on the coarser material, yet permits the finished material to pass through the jaws.
| Model(Inlet size) | Voltage(V) | Power(kw) | Input size(mm) | Output size(mm) | Spindle speed(r/min) | capacity(kg/hour) | Overall dimensions(mm) D*W*H |
| 100*60mm | 380V/50HZ | 1.5 | ≤50 | 0.1~15 | 600 | 45~550 | 750*370*480 |
| 100*100mm | 380V/50HZ | 1.5 | ≤80 | 3~25 | 600 | 60~850 | 820*360*520 |
| 150*125mm | 380V/50HZ | 3 | ≤120 | 4~45 | 375 | 500~3000 | 960*400*650 |
