China HJS-60 Twin shaft Paddle Lab Concrete Mixer

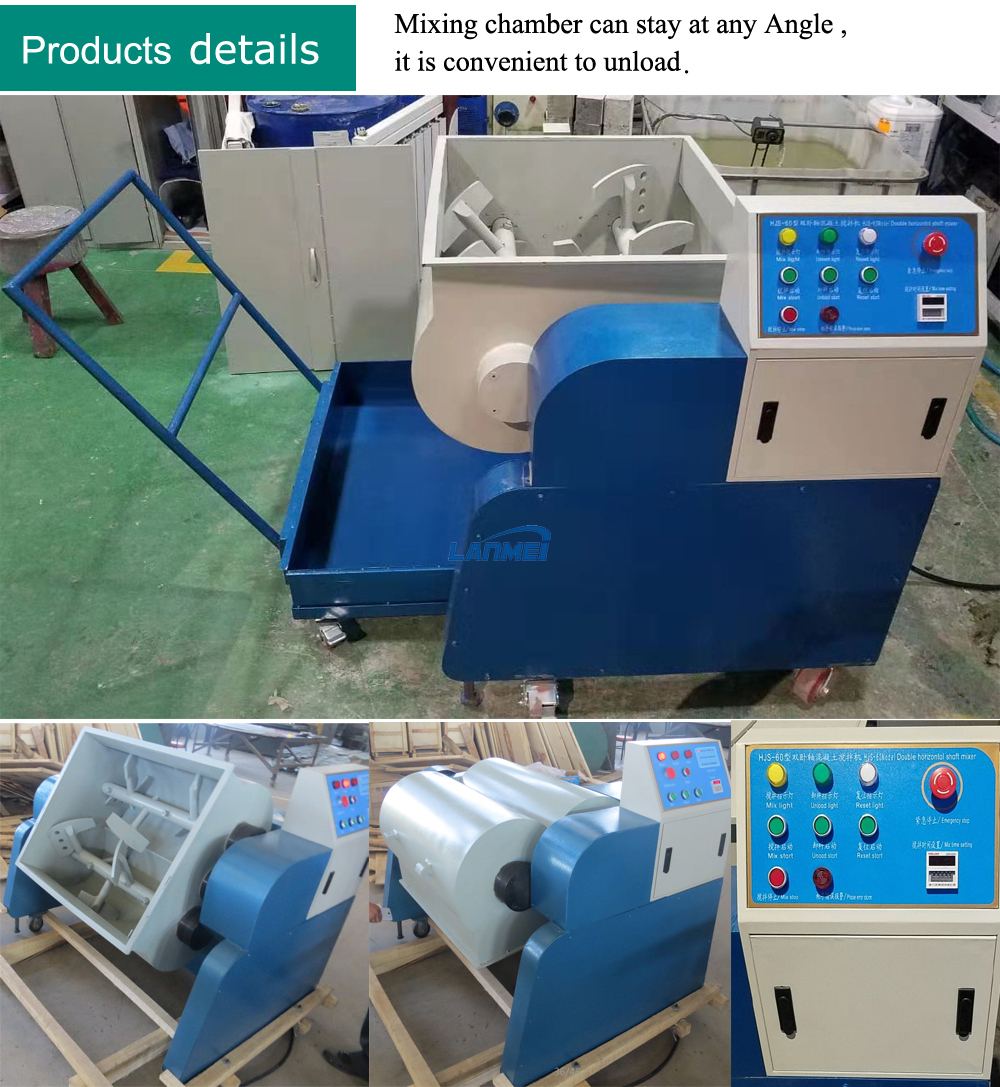

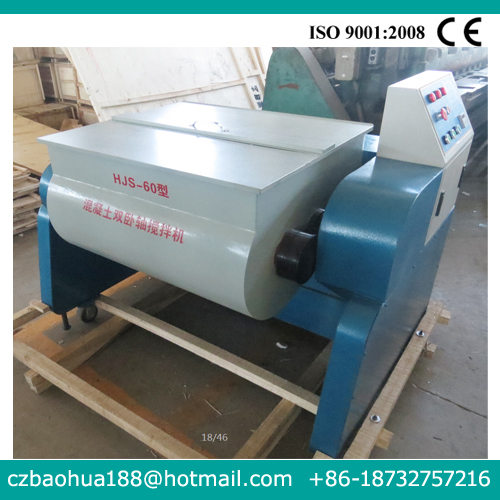

HJS-60 double horizontal shaft concrete mixer

This equipment is new type experimental concrete mixer designed and manufactured according to the JG244-2009 standards of the main technical parameters promulgated by the ministry of housing construction.It can mix the gravel, sand, cement and water mixture stipulated in the standards to form homogeneous concrete material for testing use, for the determination of cement standard consistency, setting time and production cement stability test block; It is the indispensable equipment in cement production enterprises, construction enterprises, colleges and universities, scientific research units and quality supervision departments laboratory; Can also be applied to other granular materials under 40 mm mixing use.

The product structure has been included in the national industry mandatory standard-(JG244-2009). The product performance meets and exceeds the standard requirements. Due to the scientific and reasonable design, strict quality control and its unique structure, the double-shaft mixer has the characteristics of high mixing efficiency, more uniform mixture and cleaner discharge. This product is suitable for machine building materials or concrete laboratories such as scientific research institutes, mixing stations, and testing units.Technical Parameters1. Construction type: double horizontal shaft2. Mixing capacity: 60L.(Overall Capacity:90L)3. Power of stirring motor 3.0KW4. Power of tipping and unloading motor: 0.75KW5. Stirring material: 16Mn steel6. Leaf mixing material: 16Mn steel7. Clearance between blade and simple wall: 1mm8. Simple wall thickness: 10mm9. Blade thickness: 12mm10.Dimensions: 1100 x 900 x 1050mm11.Weight: about 700kg
