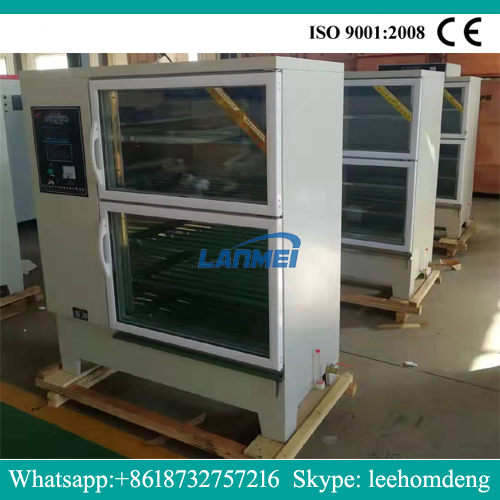

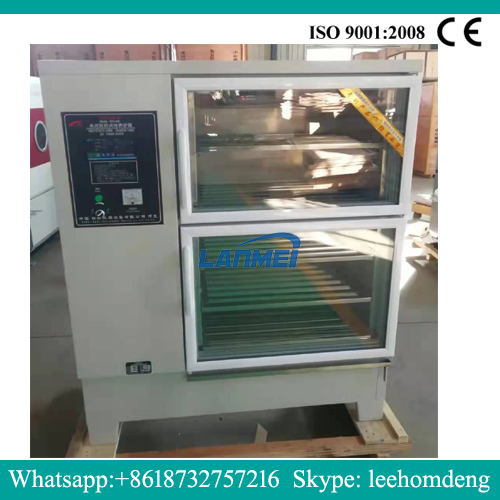

Lab Cement Concrete Curing Cabinet
Ideal for curing cement specimens in commercial and site laboratories, very practical and easy to use. The frame is made of strong polypropylene structure, which is chemical resistant and particularly suitable for cement applications. The front doors are fitted with transparent glass. The humidity is maintained from 95% to saturation by water nebulizer. The temperature is maintained to 20±1°C by a immersion heater and separated refrigerator unit . The four stainless steel racks of the internal frame can support the moulds with specimens and a large number of cement prisms. It can also be used to concrete cubes and other mortar specimens.
This product meets the requirements of the new standard JC / T959-2005. It is applicable to the cement body curing box for strength inspection according to CB / T17671-1999, and can also be used to designate other body cement testing boxes using this standard.
Technical Parameter:
1.Internal dimensions: 700 x 640×1100 (mm)
2. Capacity: 40 sets of Soft practice test mold
3. Constant temperature accuracy (each layer): ± 0.5 ℃
4. Constant temperature range: 16-40 ℃ adjustable
5. Constant humidity accuracy: ≤5% RH
6. Constant humidity range: ≥90%
7. Compressor power: 192W
8. Heating power: 300W
9. Fan power: 30Wx2
10.Net weight: 150kg
11.Dimensions are approximately: 1200 × 720 x 1550mm
