Drawer Type Cement Constant Temperature Water Curing Cabinet

Cement Constant Temperature Water Curing Cabinet

SBY-20C model Technical Details:

1. 1.Power source: 10% AC220V

2. 2. Internal measurements are 520 x 450 x 880mm.

3. 3. The capacity is 20 drawers with a total of 20 groups of 6 items each, measuring 180*320*75mm.40 x 40 x 160 soft practice test mold

4. 4. Water at a constant temperature of 20  °C

5. 5. 145W of cooling power6. 300W of heating power

6. 6. A 30W internal circulation fan

7. 7.weight. 130 kg

8. 9. Laboratory as a working environment

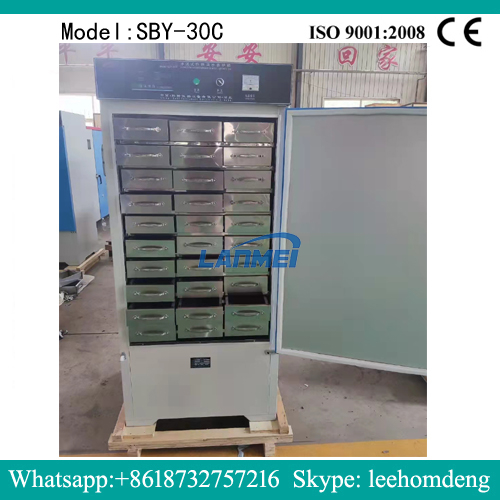

Technical specifications for the Model SBY-30C:

1. Power source: 10% AC220V

2.  Inside measurements are 690 x 550 x 1100mm

3.  There are 30 drawers with a capacity of 6 pieces each (soft test mold 40 x 40 x 160). That’s thirty groupings.

4.  Water is always at a temperature of 20 1 °C.

5.  216W of cooling power

6.  300W of heating power

7.  A 45-watt internal fan

8. weight. 140 kilograms9. Laboratory as a working environment

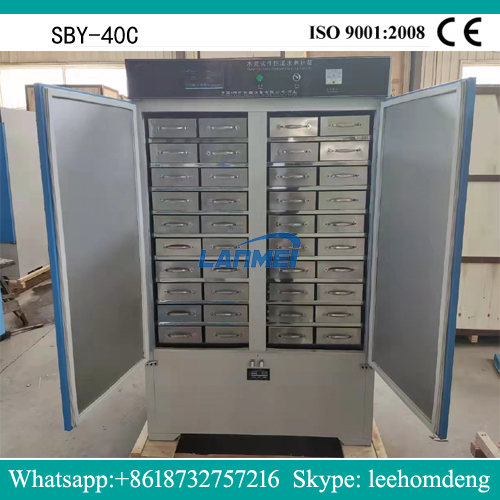

SBY-40C model Technical Details:

1. Power source: 10% AC220V

2.  The box is 1000 x 500 x 1050mm.

3. There are 40 drawers with a capacity of six pieces each, making a total of 40 groups.40 x 40 x 160 soft practice test mold4. Water at a constant temperature of 20  °C

4.  165W of cooling power

5.  Internal circulation fan: 30Wx2

6.  Heating power: 300W.

7. Weight: 150 kilogram
