Product Description
Small Jaw Crusher
We can customize jaw crusher according to user’s requirements.
Uses:
It is used in crushing rock and ore with mid-hardness of units of mine, metallurgy, geology, building material, light industry, chemical industry and testing.
Characteristics:
1. The dental plate is made of high manganese steel with big crushing strength and good result.
2. The output size could be adjusted by regulating screw.
3. It adopts Y90L-4 three-phase motor, safe and reliable.
Technical Data:
Model:150*250.
Max input size: 125mm,
Discharge port adjustment range:10~40mm,
Capacity:1~3 m³/h,
Spindle speed:285 r/min,
Power:5.5KW,380V/50HZ,
Weight:700kg

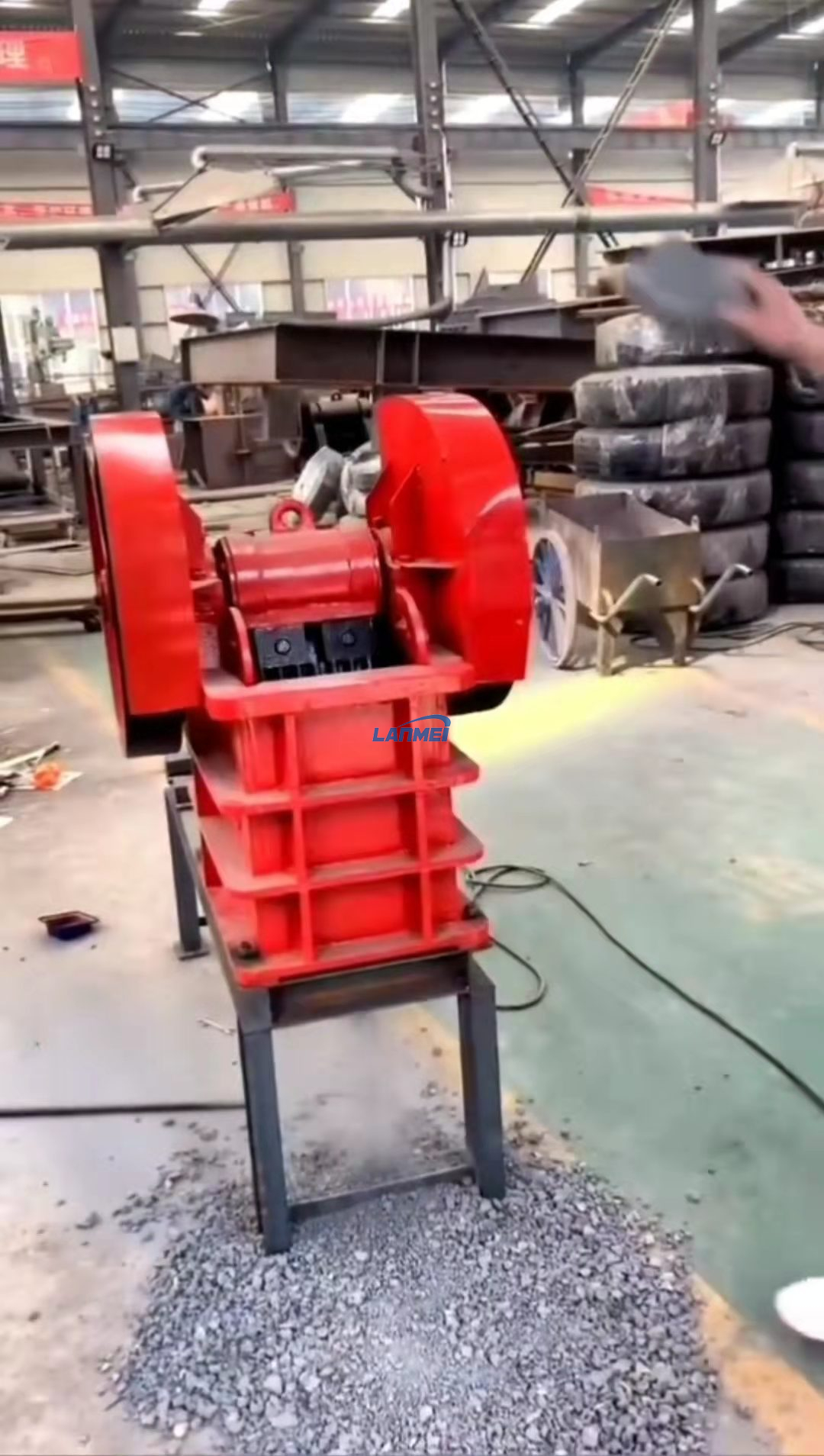

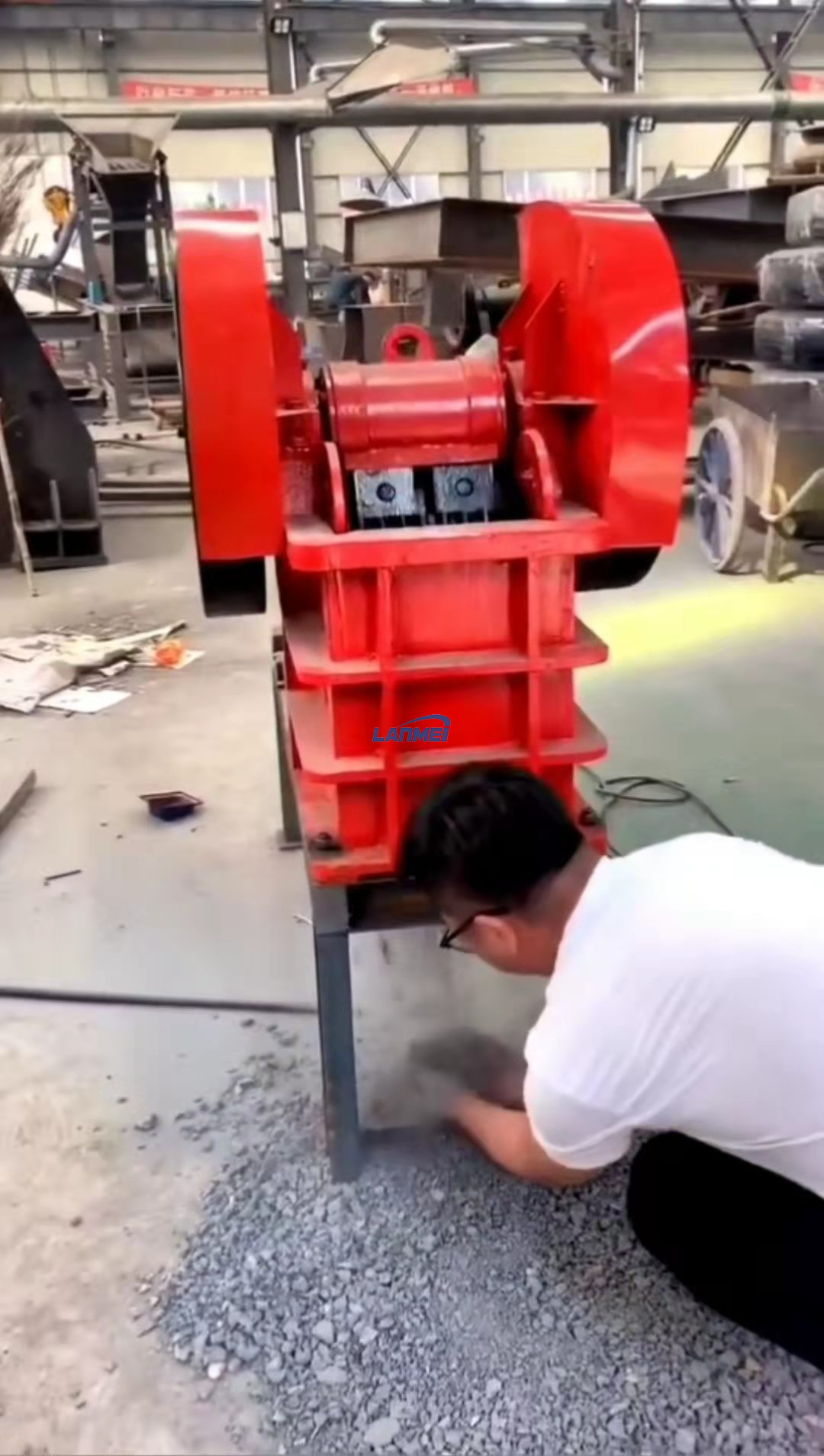

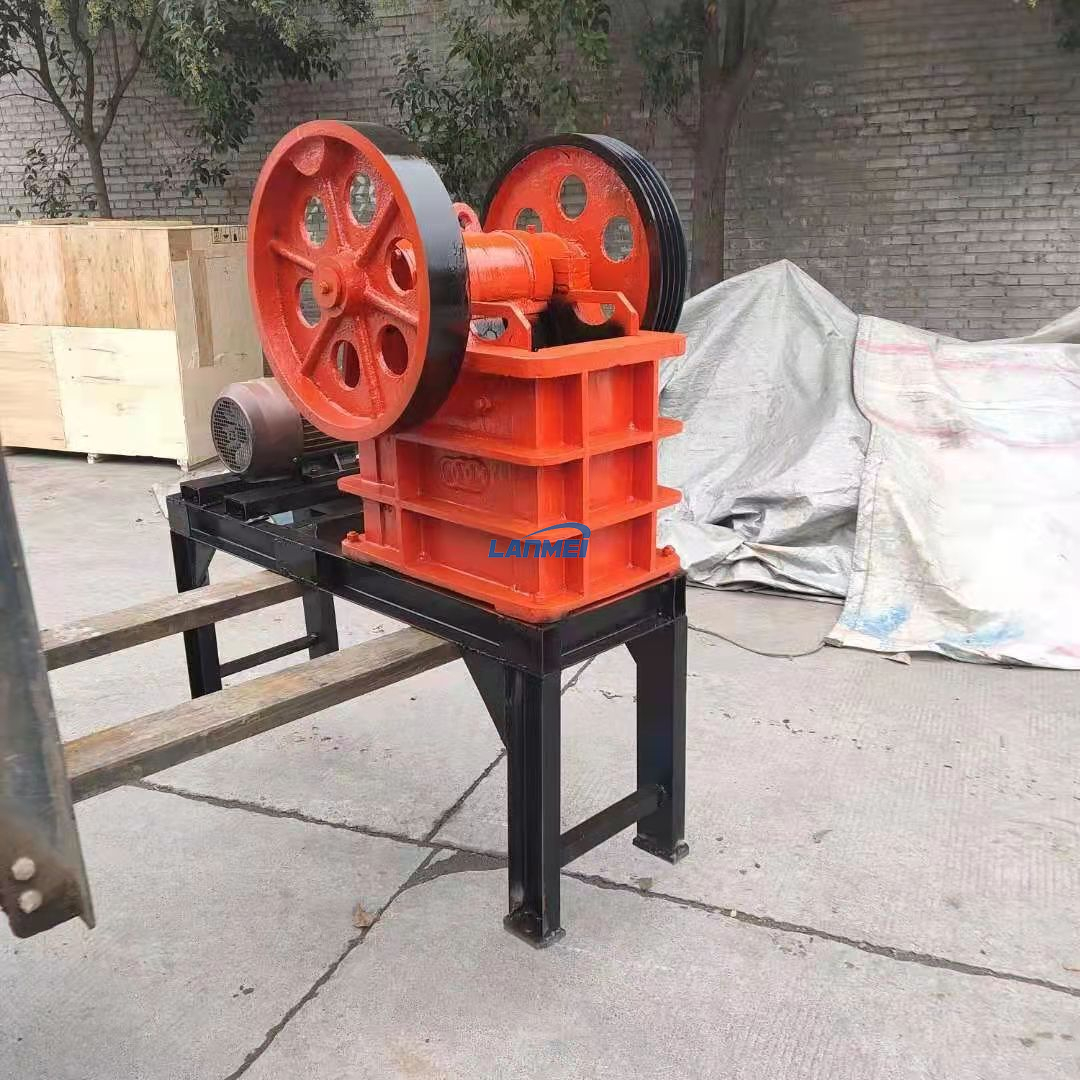

Reference photos:
Related product:
Model | Voltage(V) | Power | Input size | Output size | Spindle speed | capacity | Overall dimensions | N.W. | G.W. |
(Inlet size) | (kw) | (mm) | (mm) | (r/min) | (kg/hour) | (mm) D*W*H | (kg) | (kg) | |
100*60mm | Three-phase,380V/50HZ | 1.5 | ≤50 | 2~13 | 600 | 45~550 | 750*370*480 | 125 | 135 |
100*100mm | Three-phase,380V/50HZ | 1.5 | ≤80 | 3~25 | 600 | 60~850 | 820*360*520 | 220 | 230 |
150*125mm | Three-phase,380V/50HZ | 3 | ≤120 | 4~45 | 375 | 500~3000 | 960*400*650 | 270 | 280 |

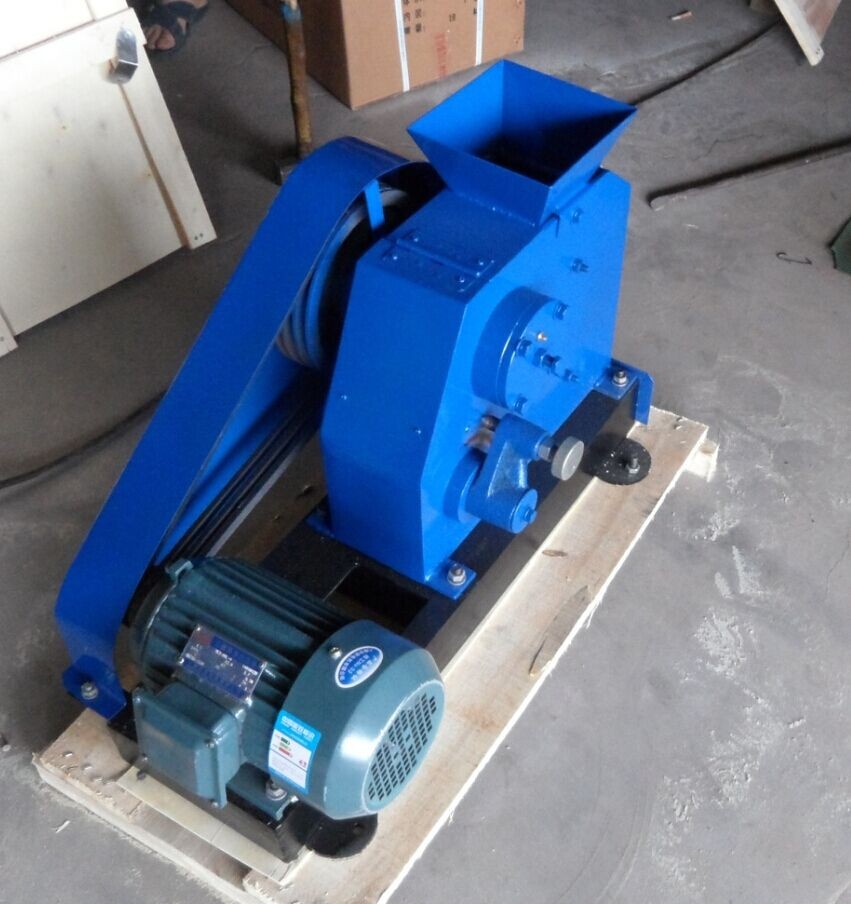

Photos for model100*60,100*100,and 150*125:

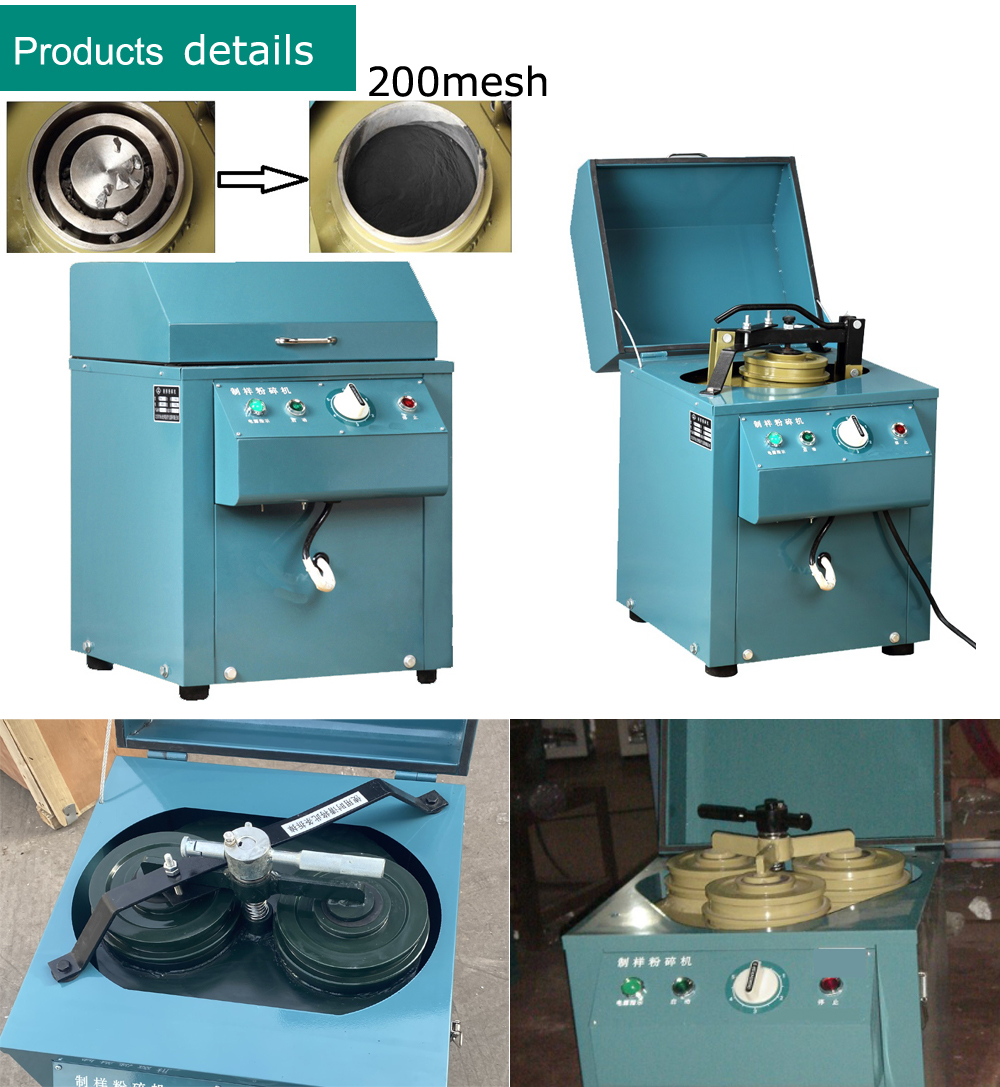

Pulverizer(MODEL:FM-1,FM-2,FM-3):
